Repair Procedures: Removal

  1. Disconnect the battery negative (-) terminal.
  2. Disconnect the CVVT oil control valve connector.
  3. Remove the valves (A) by loosening the mounting bolt.

    Tightening torque:

    9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

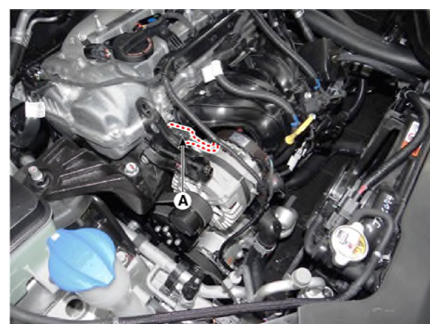

    [Intake]

    G13480664Courtesy of KIA MOTORS AMERICA, INC.

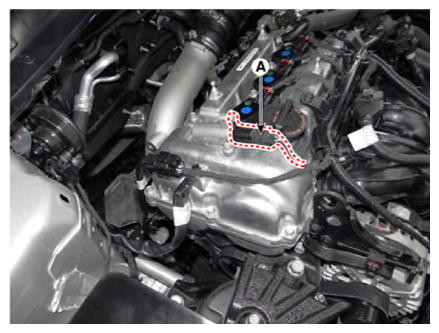

    [Exhaust]

    G13480665Courtesy of KIA MOTORS AMERICA, INC.
