Repair Procedures: Removal: Intake

  1. Disconnect the battery negative (-) terminal.

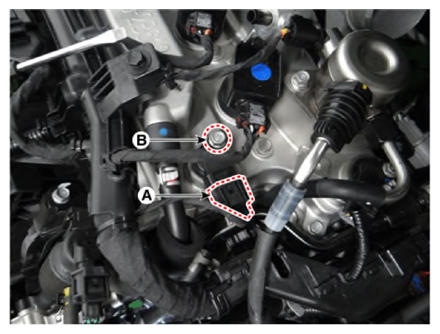

  2. Disconnect the camshaft position sensor connector (A).
  3. Remove the sensor by loosening the mounting bolt (B).

    Tightening torque:

    7.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb.ft)

    G13480636Courtesy of KIA MOTORS AMERICA, INC.
