Repair Procedures: Installation
- Install in the reverse order of removal.NOTE:
- Install the component with the specified torques.
- Note that internal damage may occur when the component is dropped. If the component has been dropped, inspect before installing.
- When installing the throttle body, be careful not to get foreign material into the throttle body.
- Refill the engine coolant system radiator with coolant.
(Refer to Engine Mechanical System - "COOLANT ")

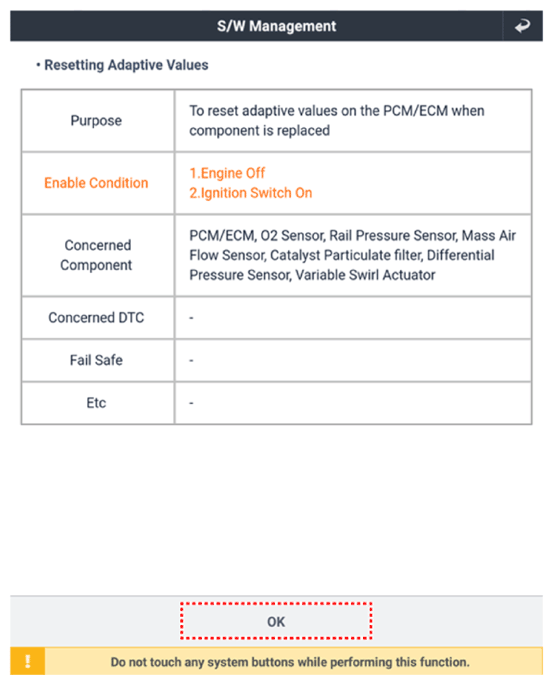

- Reset the ECM adaptive values after replacing the ETC.
- Perform the ETC learning procedure
(Refer to ETC (Electronic Throttle Control) System - "ADJUSTMENT ")
