Repair Procedures: Removal
- Disconnect the battery negative (-) terminal.
- Remove the air cleaner.
(Refer to Engine Mechanical System - "AIR CLEANER ")
- Remove the intercooler outlet hose.

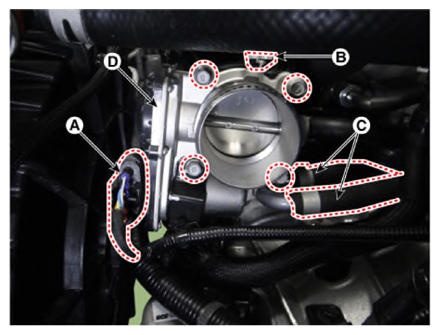

- Disconnect the ETC module connector (A) and separate vapor hose (B).
- Separate the coolant hoses (C).
- Remove the ETC module (D) mounting bolts.
Tightening toque:
9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)
