Component Location

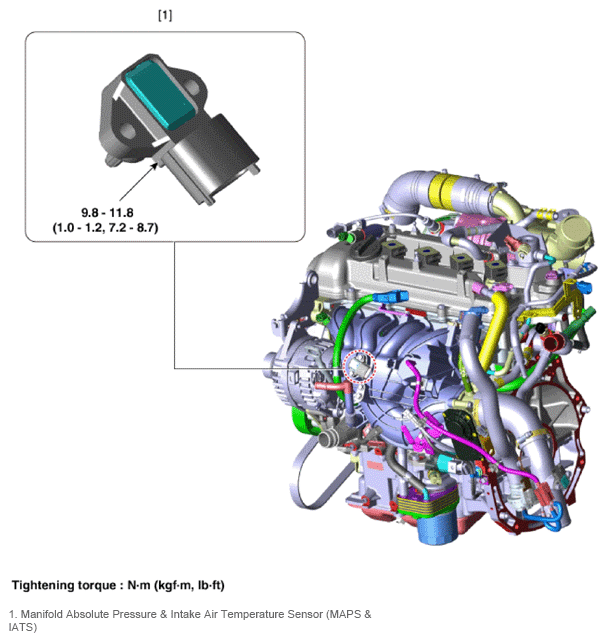

Fig 1: Manifold Absolute Pressure And Intake Air Temperature Sensor Component Location With Torque Specification
G13480611Courtesy of KIA MOTORS AMERICA, INC.
