Smart Key Code Saving

  1. Connect the VCI II in driver side crash pad lower panel, turn the power on KDS.

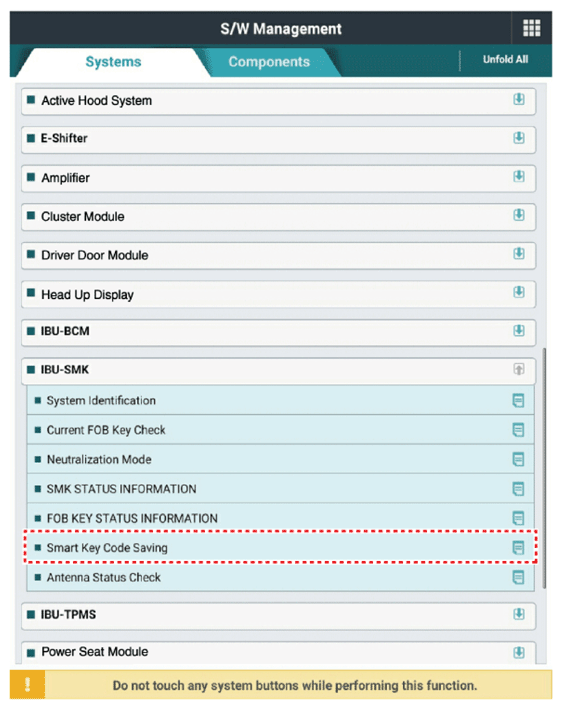

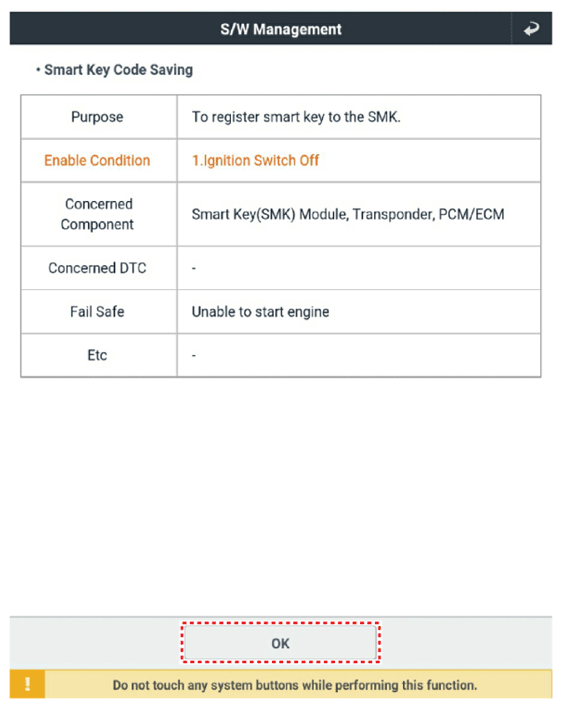

  2. Select the vehicle model and then do "Smart key code saving".
    G13282829Courtesy of KIA MOTORS AMERICA, INC.
    G13282830Courtesy of KIA MOTORS AMERICA, INC.

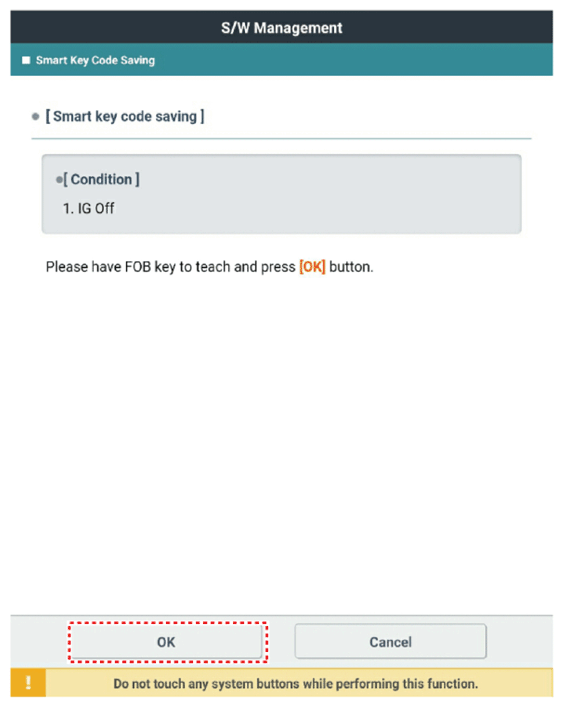

  3. After selecting "Smart key teaching" menu, push "Enter" key, then the screen will be shown as below.
    G13282831Courtesy of KIA MOTORS AMERICA, INC.
  4. After having the teaching smart key, push "ENTER" key.

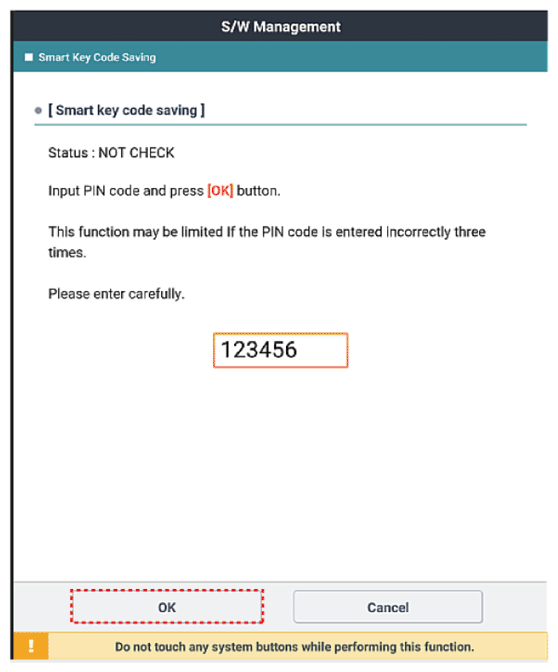

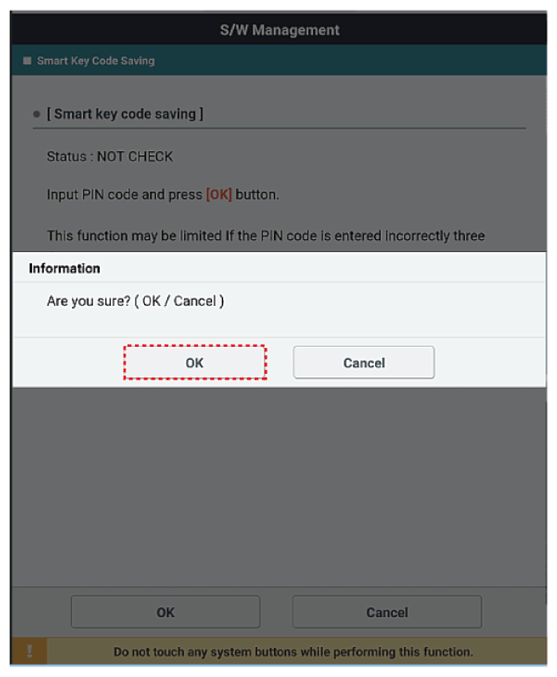

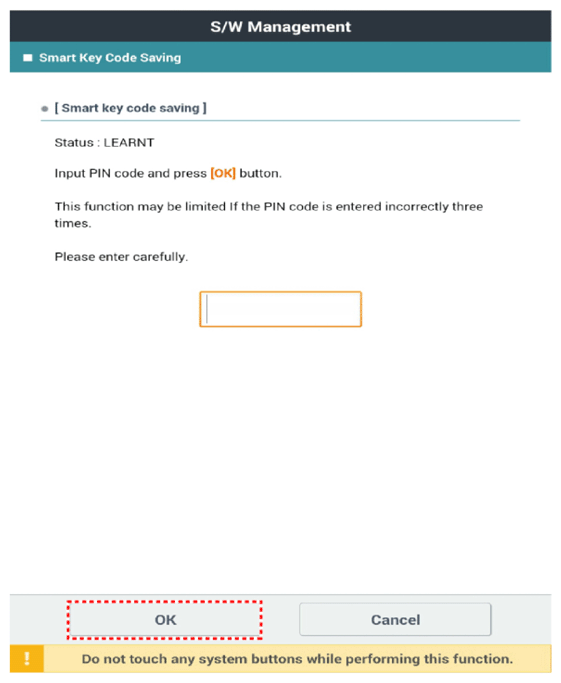

  5. Input the "Pin code" for first key teaching.
    G13282832Courtesy of KIA MOTORS AMERICA, INC.
    G13282833Courtesy of KIA MOTORS AMERICA, INC.
    G13282834Courtesy of KIA MOTORS AMERICA, INC.
  6. Confirm the message "First key teaching completed".

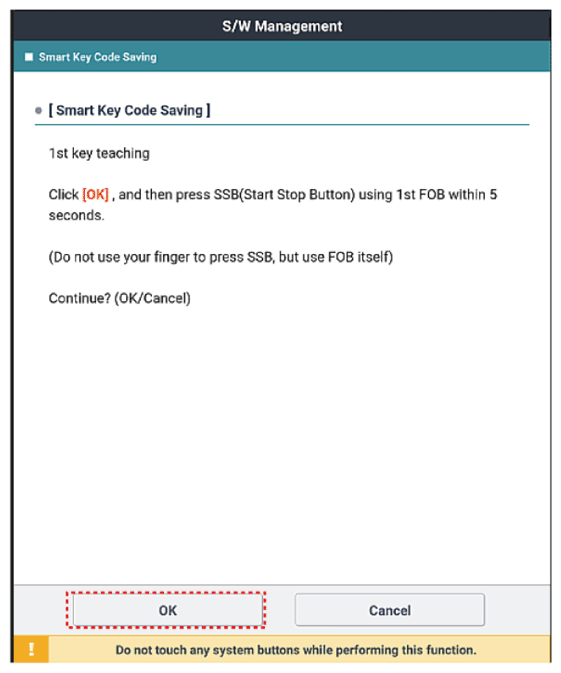

    G13282835Courtesy of KIA MOTORS AMERICA, INC.

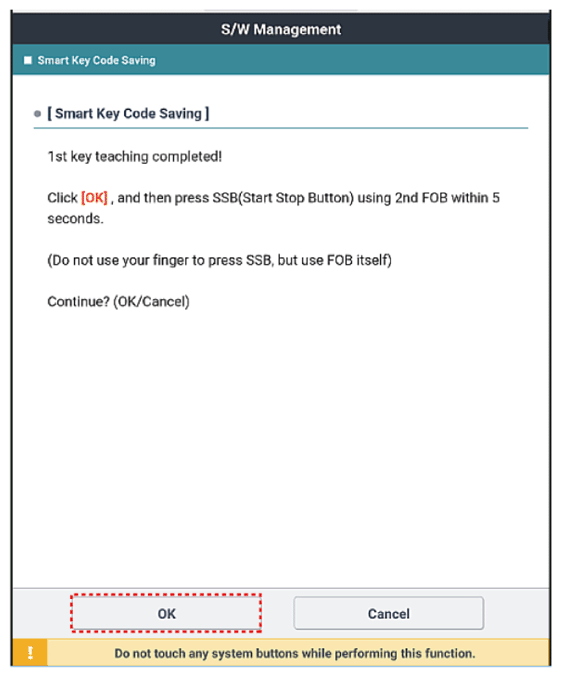

  7. Press the SSB with smart key within 5 sec after pressing "OK".
    G13282836Courtesy of KIA MOTORS AMERICA, INC.

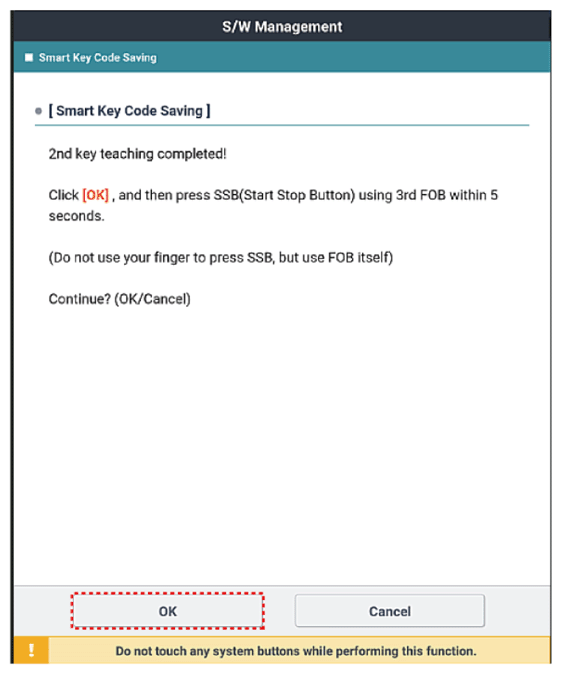

  8. Confirm the message "Second key teaching completed".
    G13282837Courtesy of KIA MOTORS AMERICA, INC.
    G13282838Courtesy of KIA MOTORS AMERICA, INC.

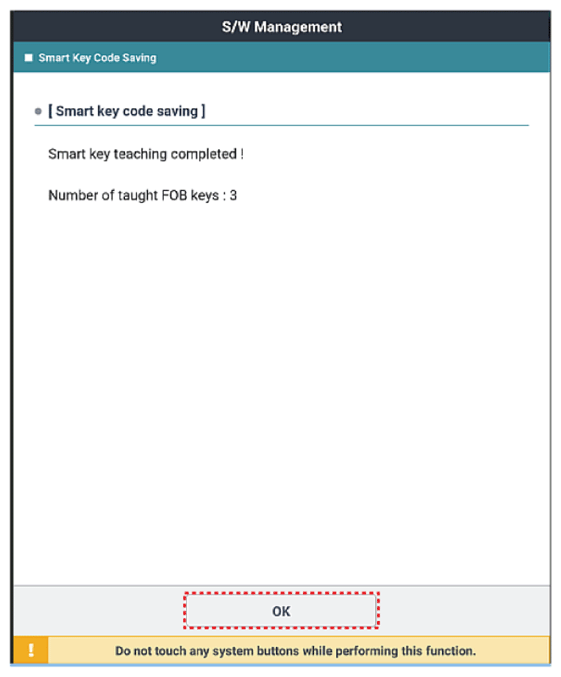

  9. Then the screen will be shown as below when key teaching process is completed.
    G13282839Courtesy of KIA MOTORS AMERICA, INC.
