Power Window Sub Switch - Rear

1. Remove the rear door trim.

   (Refer to Body - "REAR DOOR TRIM ")

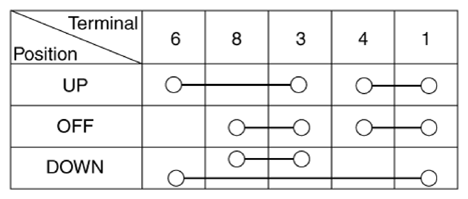

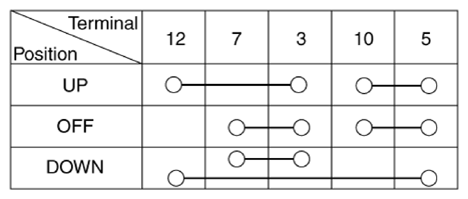

2. Check for continuity between the terminals in each switch position according to the table.

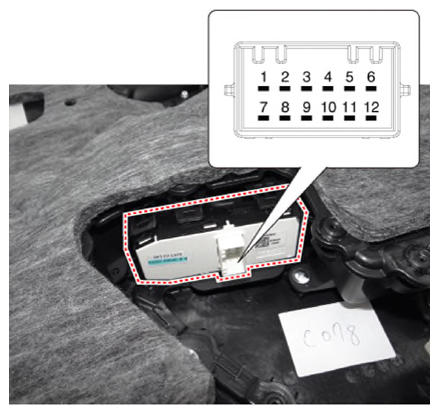

   [Seat Warmer]

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

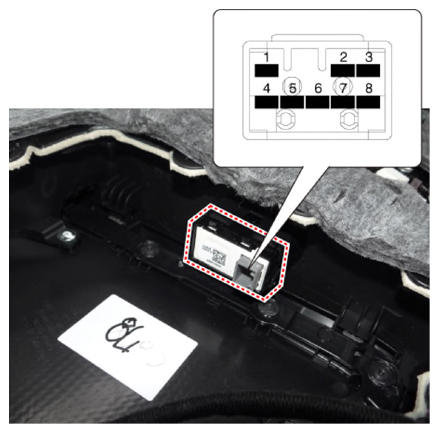

[Non-Seat Warmer]

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.
