Repair Procedures: Removal

  1. Remove the front bumper assembly.

    (Refer to Body - "FRONT BUMPER ASSEMBLY ")

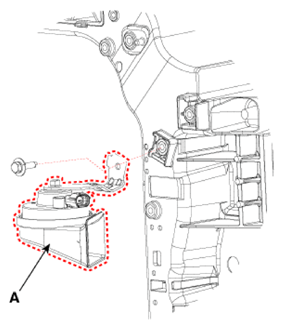

  2. Remove the horn (A) by loosening the bolt after disconnecting the connector.
G13282485Courtesy of KIA MOTORS AMERICA, INC.
