Connector Assembly Status Test

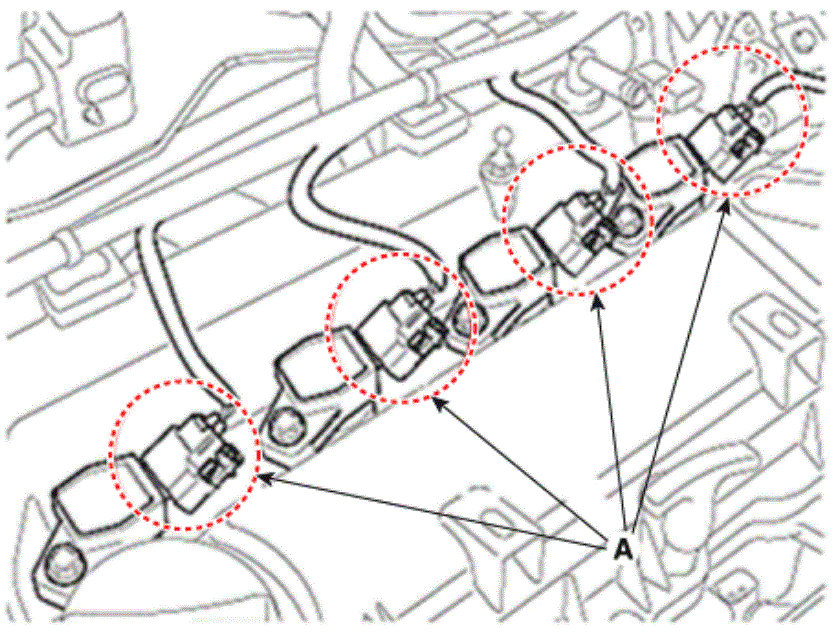

  1. Remove the connector (A) and reinstall it.
    G00607676Courtesy of KIA MOTORS AMERICA, INC.
    G13833659Courtesy of KIA MOTORS AMERICA, INC.
