Run Out Inspection

  1. Jack up the vehicle.

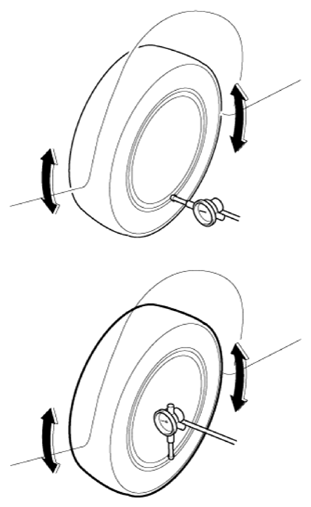

  2. Measure the wheel Run-out by using a dial indicator as illustration below.
    Run-out Aluminum
    Radial mm (in.) Below 0.3 (0.0118)
    Lateral mm (in.) Below 0.3 (0.0118)
  3. If measured value exceeds the standard value, replace the wheel.
G13281442Courtesy of KIA MOTORS AMERICA, INC.
