Liftgate Lid Handle

  1. Remove the liftgate trim.

    (Refer to Body - "LIFTGATE TRIM ")

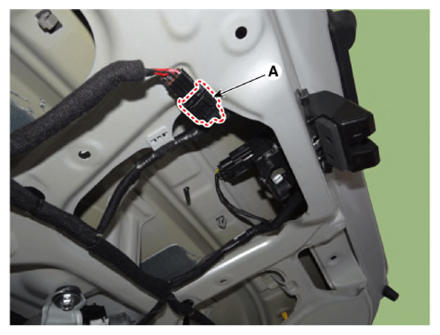

  2. Disconnect the connector (A).
    G13282841Courtesy of KIA MOTORS AMERICA, INC.

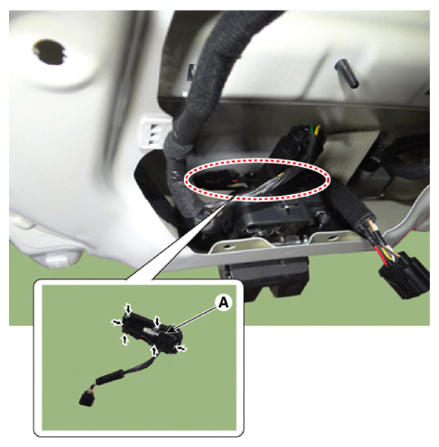

  3. Remove the liftgate lid handle & rear view camera assembly (A) by pressing the fixing hooks in the direction of arrows.
    G13282842Courtesy of KIA MOTORS AMERICA, INC.
