Repair Procedures: Removal
- Turn the ignition switch OFF and disconnect the battery negative (-) terminal.
- Remove the air cleaner assembly.
(Refer to Engine Mechanical System - "AIR CLEANER ")

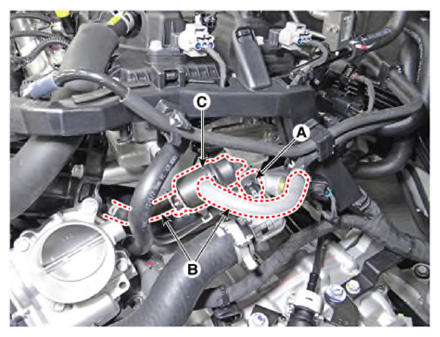

- Disconnect the purge control solenoid valve (PCSV) connector (A) and vapor hoses (B).
- Remove the purge control solenoid valve (PCSV) (C).
