Repair Procedures: Removal

  1. Disconnect the battery negative terminal.
  2. Remove the engine cover.

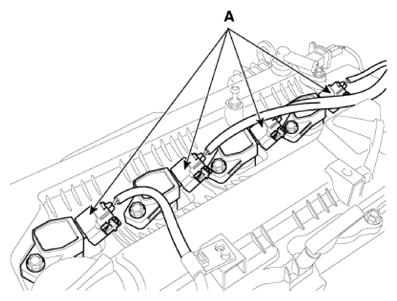

  3. Disconnect the ignition coil connectors (A).
    G13283644Courtesy of KIA MOTORS AMERICA, INC.
    NOTE:

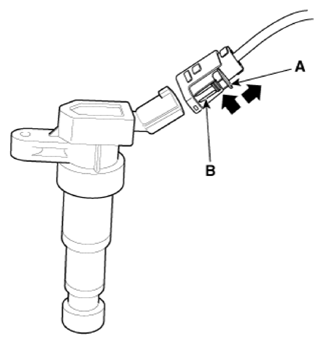

    • When removing the ignition coil connector, pull the lock pin (A) and push the clip (B).
      G13283645Courtesy of KIA MOTORS AMERICA, INC.

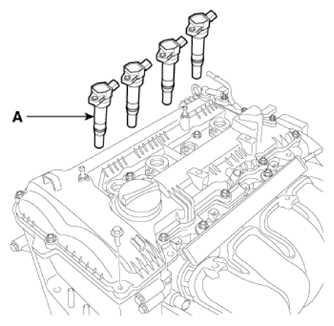

  4. Remove the ignition coil (A).
    G13283646Courtesy of KIA MOTORS AMERICA, INC.
