Battery Tray
- Remove the battery.
(Refer to Battery System - "BATTERY ")
- Remove the air cleaner.
G 1.6 T-GDI GAMMA (Refer to Engine Mechanical System - "AIR CLEANER ")
G 2.0 MPI NU(ATKINSON) (Refer to Engine Mechanical System - "AIR CLEANER ")
- Remove the ECM.
G 1.6 T-GDI GAMMA (Refer to Engine Control/Fuel System - "ENGINE CONTROL MODULE ")
G 2.0 MPI NU(ATKINSON) (Refer to Engine Control/Fuel System - "ENGINE CONTROL MODULE ")

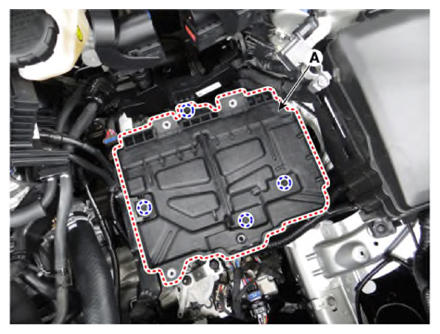

- Remove the battery tray (A) after loosening the mounting bolts.
Tightening torque:
8.8 - 13.7 N.m (0.9 - 1.4 kgf.m, 6.5 - 10.1 lb.ft)
