Removal & Installation

  1. Turn the ignition switch OFF and disconnect the battery (-) terminal.
  2. Remove the front bumper assembly.

    (Refer to Body - "FRONT BUMPER ASSEMBLY ")

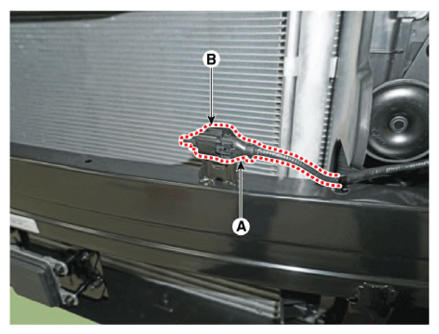

  3. Disconnect the connector (A) and then remove the ambient temperature sensor (B).
    G13280836Courtesy of KIA MOTORS AMERICA, INC.
  4. Install in the reverse order of removal.
NOTE: Note that internal damage may occur when the component is dropped. If the component has been dropped, inspect before installing.
