Removal & Installation

Turn the ignition switch OFF and disconnect the battery negative (-) terminal.
Remove the air duct.

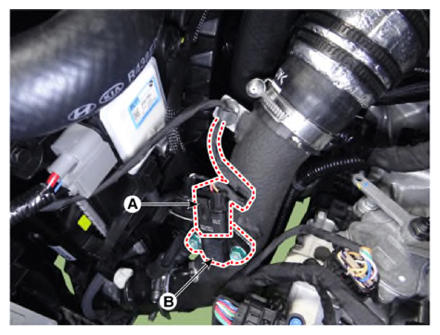

Disconnect the boost pressure sensor connector (A).
Remove the sensor (B) by loosening the mounting bolts.
Boost pressure sensor mounting bolt:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)

Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.

NOTE:

Install the component with the specified torques.
Note that internal damage may occur when the component is dropped. If the component has been dropped, inspect before installing.
