Removal And Installation

  1. Turn ignition switch OFF and disconnect the battery negative (-) terminal.

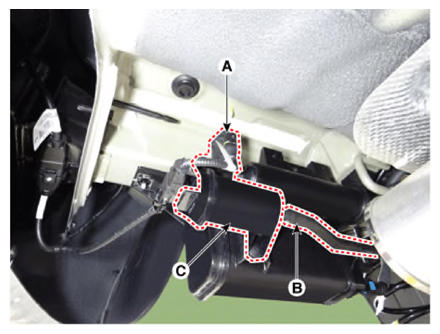

  2. Disconnect the canister close valve extension connector (A).
  3. Disconnect the ventilation hose (A).
  4. Remove installation clip (B) and then remove the fuel tank air filter & canister close valve.
    G13280923Courtesy of KIA MOTORS AMERICA, INC.

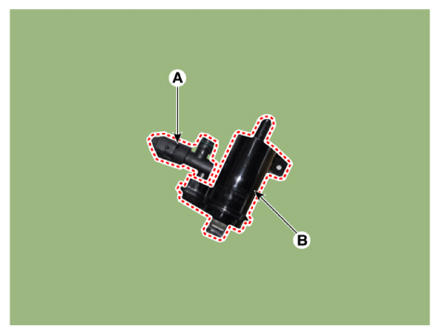

  5. Separate the canister close valve (A) from the fuel tank air filter (B).
    G13280924Courtesy of KIA MOTORS AMERICA, INC.
  6. Install in the reverse order of removal.
