Components Location

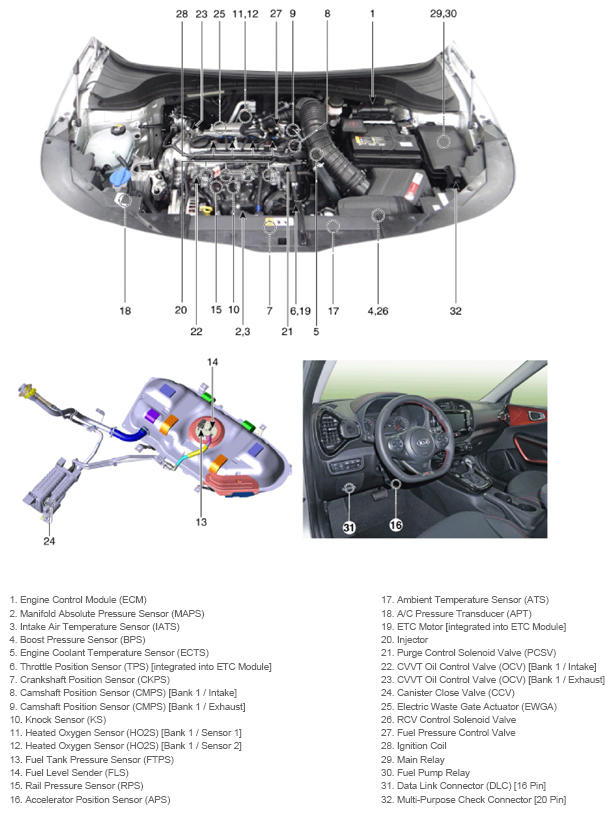

G13280804Courtesy of KIA MOTORS AMERICA, INC.

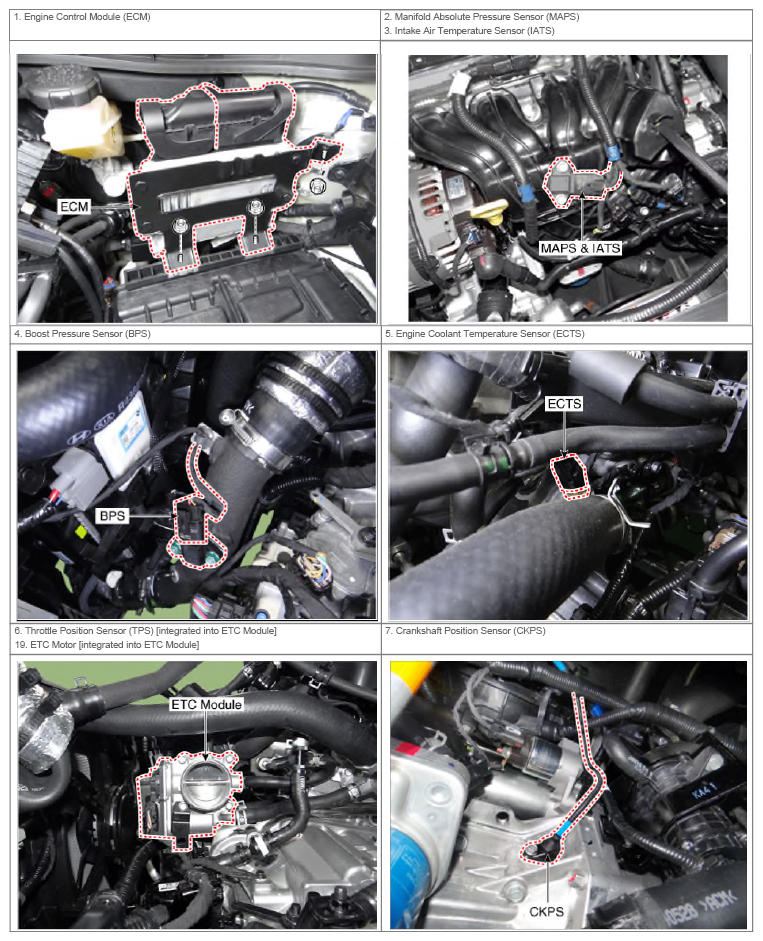

G13280805Courtesy of KIA MOTORS AMERICA, INC.

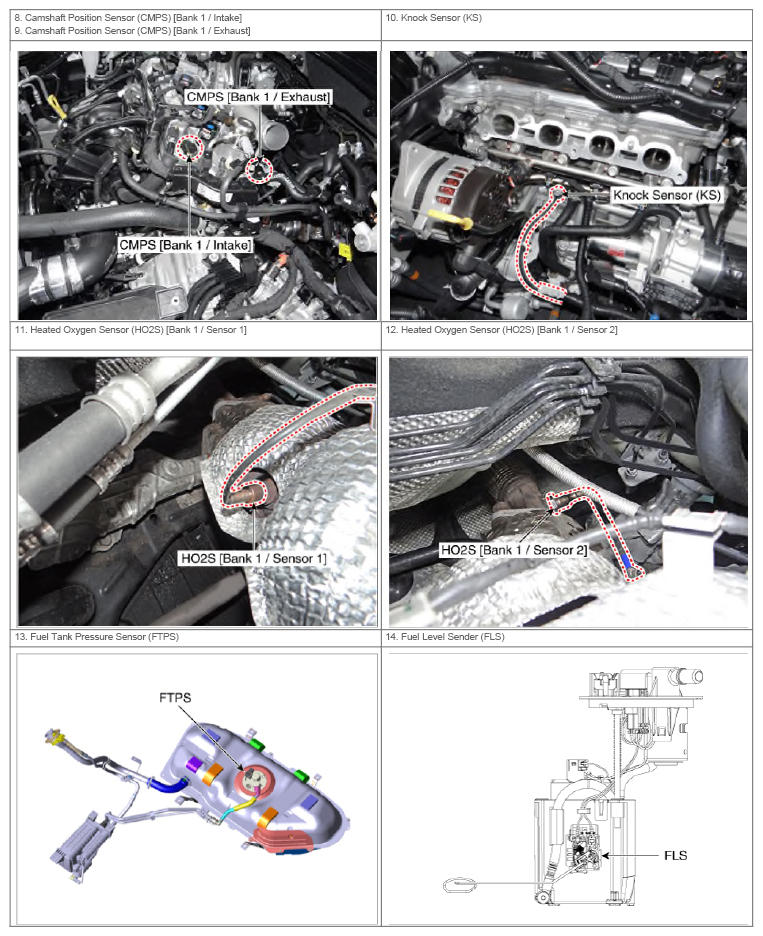

G13280806Courtesy of KIA MOTORS AMERICA, INC.

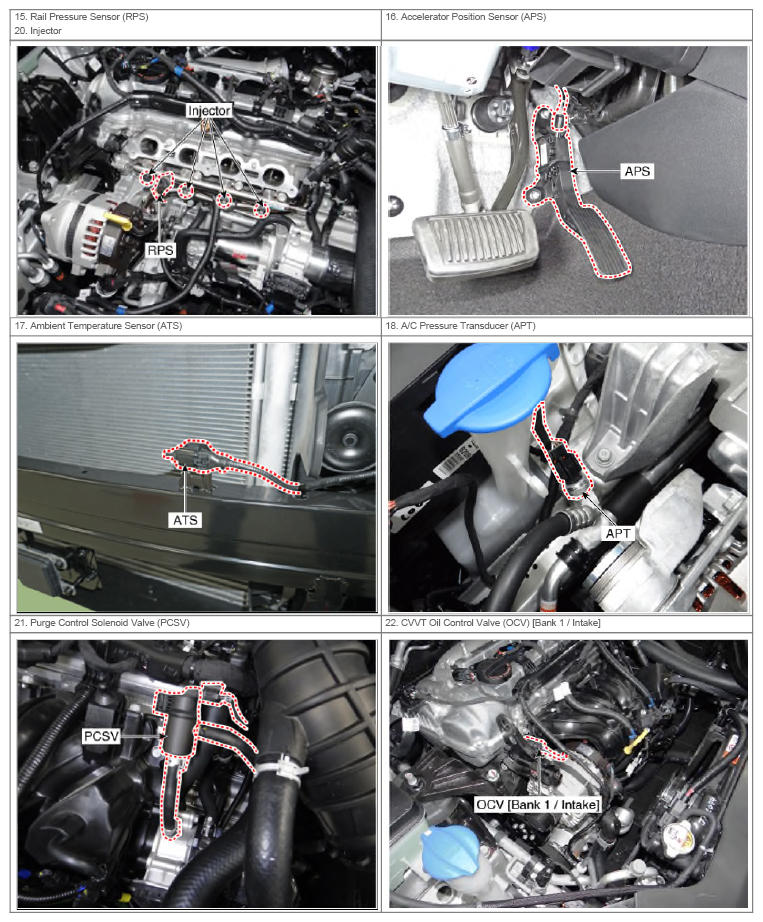

G13280807Courtesy of KIA MOTORS AMERICA, INC.

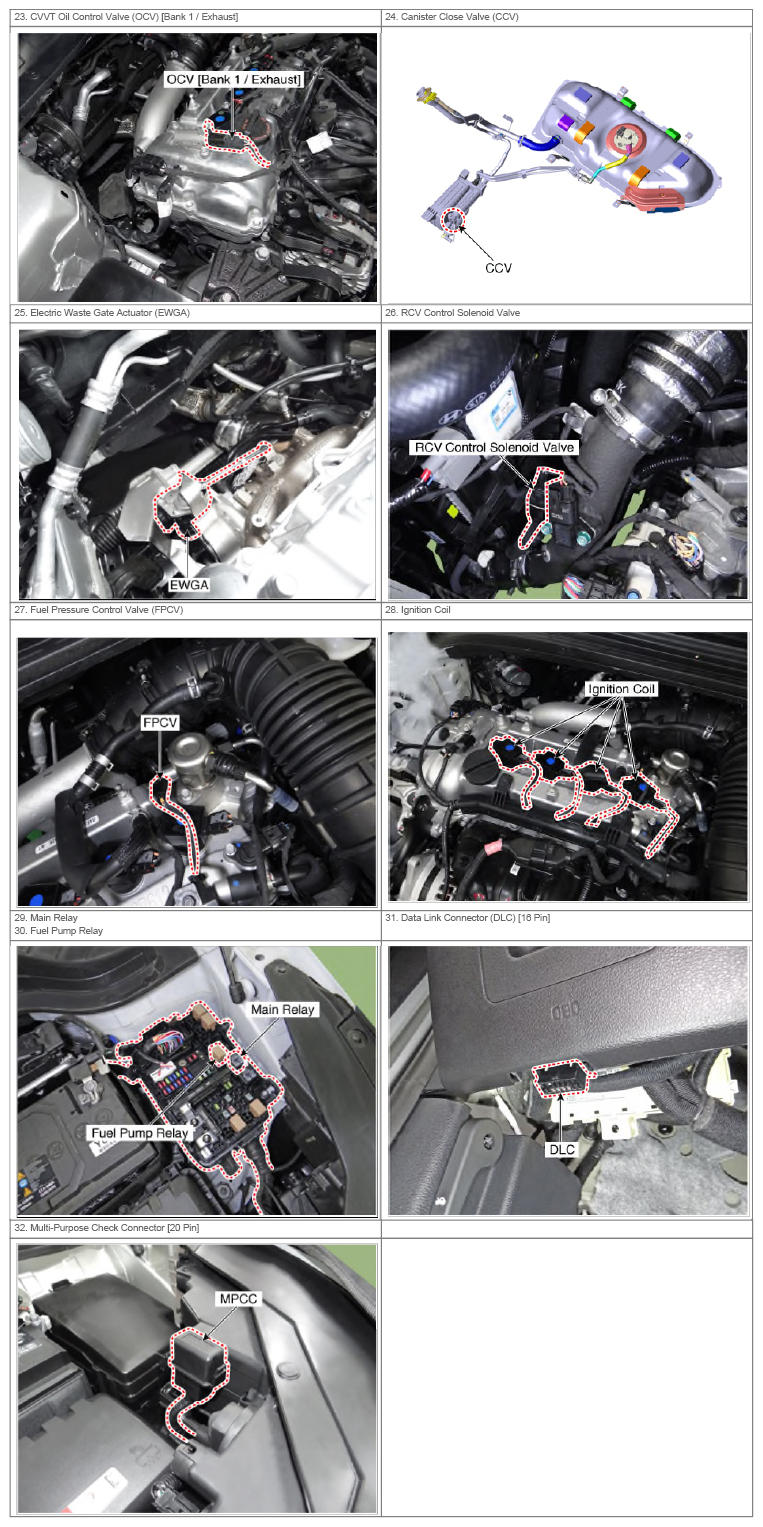

G13280808Courtesy of KIA MOTORS AMERICA, INC.
