Removal And Installation

Turn the ignition switch OFF and disconnect the battery negative (-) terminal.
Remove the rear seat.
(Refer to Body - "REAR SEAT ASSEMBLY ")

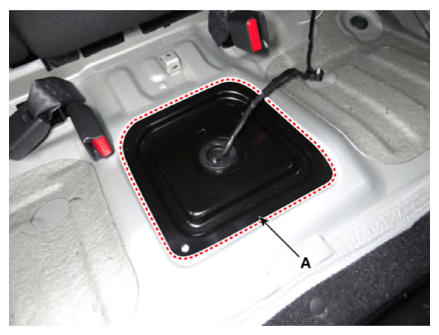

Remove the fuel pump service cover (A).

Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the fuel tank pressure sensor connector (A).
Remove the fuel tank pressure sensor (B) after releasing the hooks vertically.

G13280881

Courtesy of KIA MOTORS AMERICA, INC.

G13280882

Courtesy of KIA MOTORS AMERICA, INC.

Installation

NOTE:

Install the component with the specified torques.
Note that internal damage may occur when the component is dropped. In this case, use it after inspecting.
Insert the sensor in the installation hole and be careful not to damage when installation.

Install in the reverse order of removal.
