Repair Procedures: Installation
- Install in the reverse order of removal.
Tightening torque:
14.7 - 24.5 N.m (1.5 - 2.5 kgf.m, 10.8 - 18.0 Ib.ft)
NOTE:
- Be careful that no contaminates enter the spark plug holes.
- Install the spark plug with the specified torque.
- Be careful not to damage external electrode when installing the spark plug.
- If spark plug is dropped, it may cause internal damage. Do not use it.

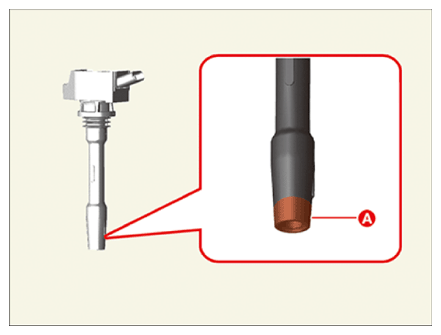

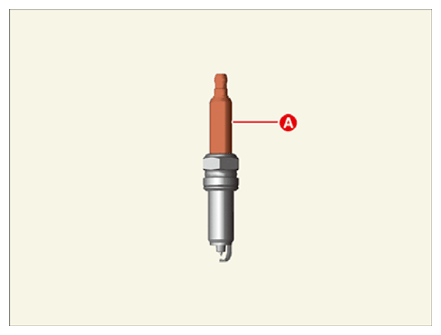

- When assembling the parts, clean the contaminated area (A) with the cloth.
- The cloth should be clean, free of contaminants, and soft enough to not damage the parts.
(When replacing ignition coil and spark plug together, cleaning is not required.)
- The cloth should be clean, free of contaminants, and soft enough to not damage the parts.
