FOB Status Check

  1. Connect the cable of KDS to the data link connector in driver side crash pad lower panel.
  2. After IG ON, select the "FOB KEY STATUS INFO".

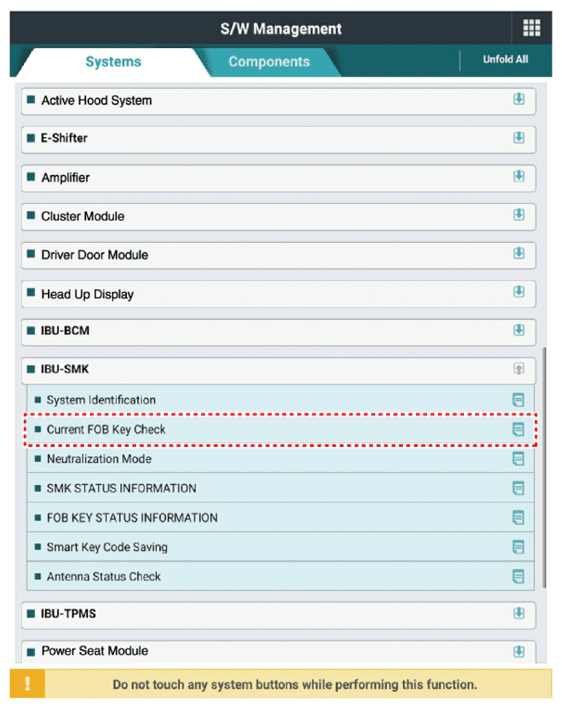

    G13282864Courtesy of KIA MOTORS AMERICA, INC.

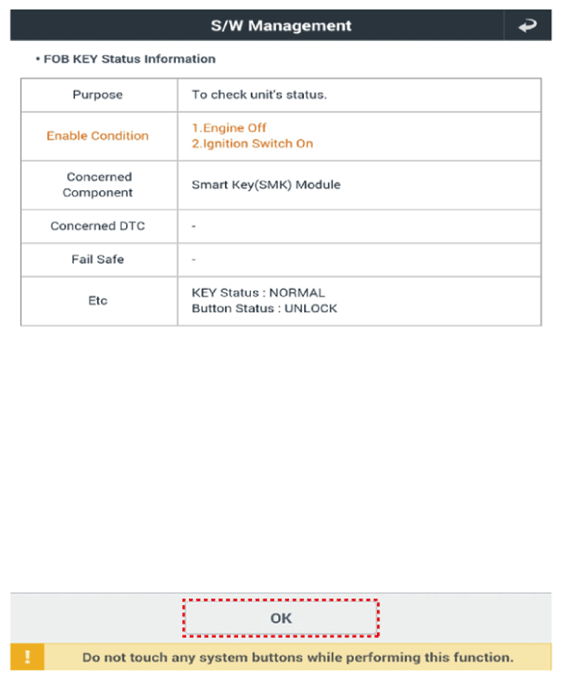

    G13282865Courtesy of KIA MOTORS AMERICA, INC.

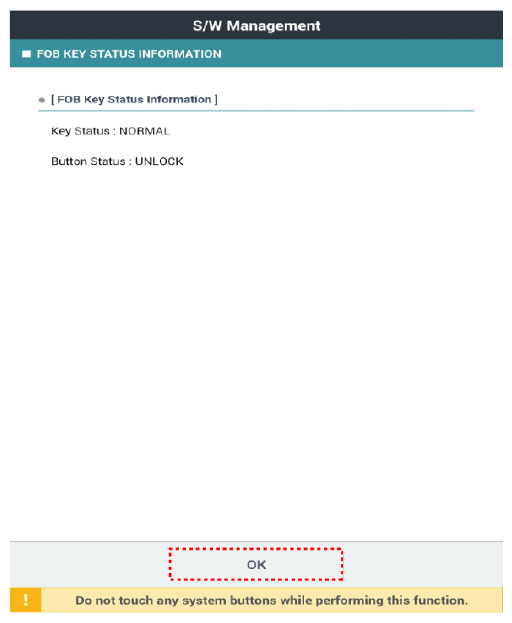

    G13282866Courtesy of KIA MOTORS AMERICA, INC.
