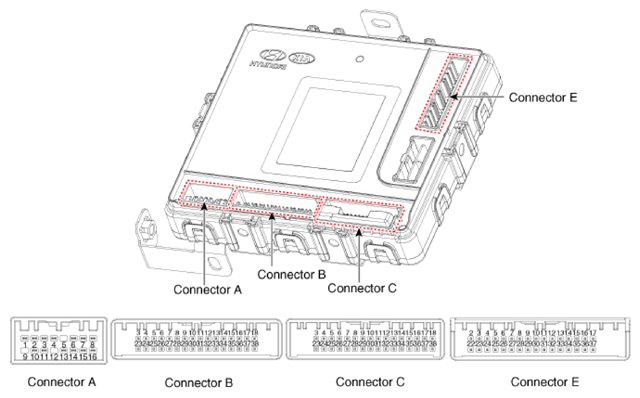

Connector And Terminal Function
| Pin | Function | |||
|---|---|---|---|---|
| Connector A | Connector B | Connector C | Connector E | |
| 1 | - | - | - | - |
| 2 | Rear washer switch (Input) | - | - | ACC relay (Output) |
| 3 | Front washer switch (Input) | PDW-R power (Output) | AT solenoid (Output) | Start relay (Output) |
| 4 | Power battery (+) | - | - | IGN 1 relay (Output) |
| 5 | - | Sunroof status (Input) | - | - |
| 6 | Power ground | Light switch (Input) | KLINE immobilizer | SSB switch 2 (Input) |
| 7 | - | Rear wiper switch (Input) | - | SSB switch 1 (Input) |
| 8 | - | Front wiper volume switch (Input) | Front wiper low back up switch (Input) | Assist outside handle antenna (+) (Output) |
| 9 | - | - | AT: 'P' position (Input) MT: Clutch ignition lock switch (Input) |
- |
| 10 | - | Front fog lamp switch | Wiper parking switch (Input) | Interior antenna 2 power (Output) |
| 11 | ECU battery | Front wiper switch (Input) | Brake switch (Input) | Driver outside handle antenna (+) (Output) |
| 12 | - | Headlamp high switch (Input) | - | Bumper antenna power (Output) |
| 13 | - | ACC (Input) | - | Trunk interior antenna (+) (Output) |
| 14 | ECU ground | IGN 2 (Input) | Assist seat belt indicator (Output) | - |
| 15 | - | - | LIN 1 (PDW) | - |
| 16 | - | PDW-R power (Input) | Front wiper low relay (Output) | - |
| 17 | - | Front wiper high relay (Output) | Wheel speed sensor (Input) | |
| 18 | Rear center seat belt indicator (Output) |
PDW-F power (Output) | - | |
| 19 | - | - | - | |
| 20 | - | - | - | |
| 21 | - | - | - | |
| 22 | - | External buzzer (Output) | IGN 2 relay (Output) | |
| 23 | - | PDWoption (Input) | - | |
| 24 | IGN 1 (Input) | Multifunction Switch ground (Input) | ESCL enable (Output) | |
| 25 | Front heated nozzle (Output) | - | Start feedback (Input) | |
| 26 | - | Immobilizer antenna power (Output) | Driver outside handle switch (Input) | |
| 27 | PDW-R switch (Input) | Immobilizer antenna ground (Output) | Assist outside handle switch (Input) | |
| 28 | Rear right seat belt indicator (Output) | Outside mirror unfolding (Output) | Assist outside handle antenna (-) (Output) | |
| 29 | Rear left seat belt indicator (Output) | Outside mirror folding (Output) | - | |
| 30 | PDW-R switch indicator (Output) | - | Interior antenna 2 ground (Output) | |
| 31 | Auto light sensor ground (Output) | - | Driver outside handle antenna (-) (Output) | |
| 32 | Auto light sensor signal (Input) | - | Bumper antenna ground (Output) | |
| 33 | Auto light sensor power (Output) | - | Trunk interior antenna (-) (Output) | |
| 34 | LIN 3 (Rain sensor) | Rear wiper relay (Output) | SSB symbol illumination (+) (Output) | |
| 35 | B-CAN (Low) | P-CAN (High) | - | |
| 36 | B-CAN (High) | P-CAN (Low) | LF searching on (Output) | |
| 37 | - | RPM (Input) | ||
| 38 | - | - | ||
| 39 | - | - | ||
| 40 | - | - | ||
