Repair Procedures: Disassembly

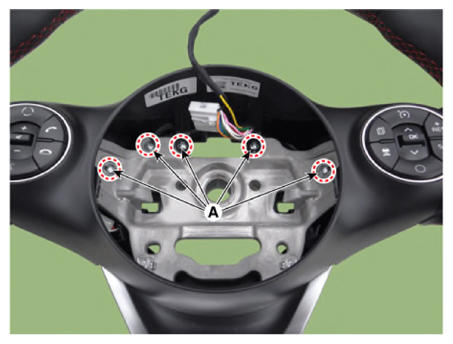

  1. Loosen the screws (A).
    G13281497Courtesy of KIA MOTORS AMERICA, INC.

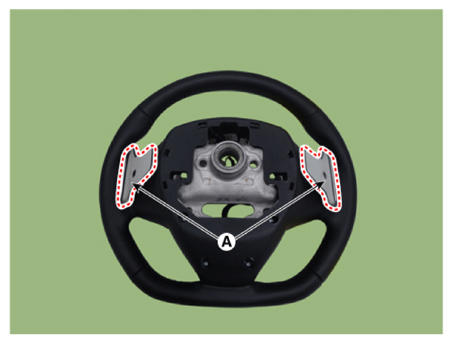

  2. Disconnect the paddle shifters (A).
    G13281498Courtesy of KIA MOTORS AMERICA, INC.

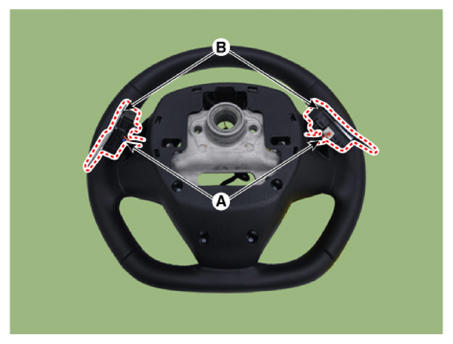

  3. Disconnect the connectors (A) and then remove the paddle shifters (B).
    G13281499Courtesy of KIA MOTORS AMERICA, INC.

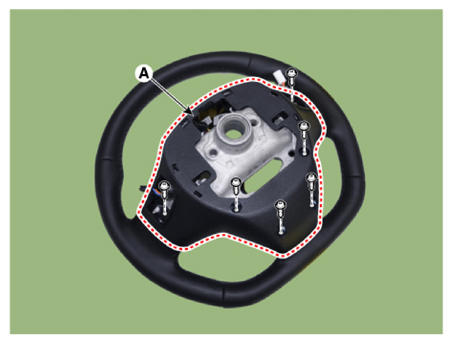

  4. Remove the lower cover (A) by loosening the screws.
    G13281500Courtesy of KIA MOTORS AMERICA, INC.

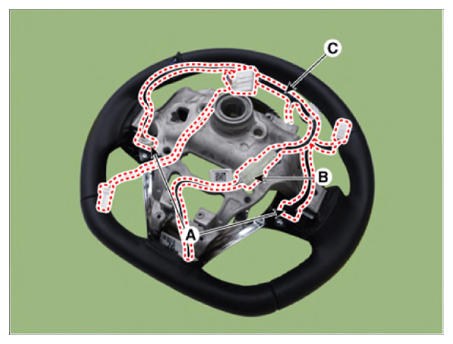

  5. Remove the steering wheel wiring.
    1. Disconnect the remote control switch connectors (A).
    2. Disconnect the heated steering wheel connector (B).
    3. Remove the steering wheel wiring (C).
    G13281501Courtesy of KIA MOTORS AMERICA, INC.

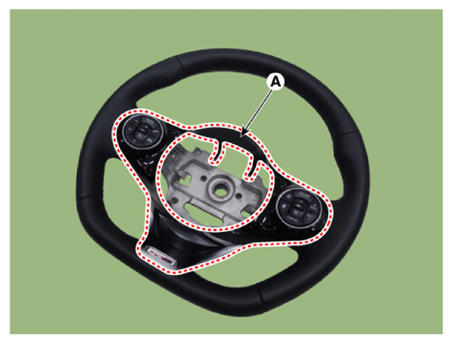

  6. Remove the remote control switch assembly (A).
    G13281502Courtesy of KIA MOTORS AMERICA, INC.

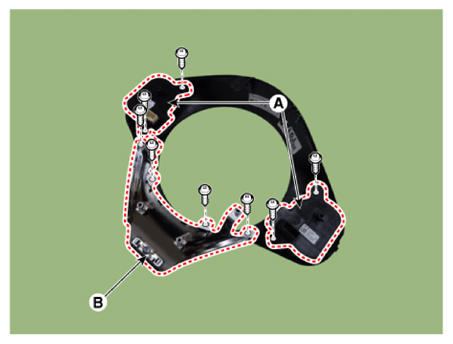

  7. Remove the remote control switch (A) and bezel (B).
    G13281503Courtesy of KIA MOTORS AMERICA, INC.
  8. Assemble in the reverse order of disassembly.
