Rear Wheel Alignment: Toe

Courtesy of KIA MOTORS AMERICA, INC.

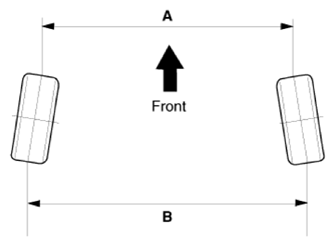

B - A > 0: Toe in (+)

B - A < 0: Toe out (-)

Toe is pre-set at the factory, so it does not need to be adjusted. If the toe is not within the standard value, replace or repair the damaged parts and then inspect again.

Toe-in

• Total: 0.30° ± 0.30 °
• Individual: 0.15° ± 0.15 °
