Tire Wear: Notes

NOTE:
  • Using tires and wheels other than the recommended sizes can cause unusual handling characteristics and poor vehicle control, resulting in a serious accident.
  1. Measure the tread depth of the tires.

    Tread depth [limit]:  1.6 mm (0.0630 in.)

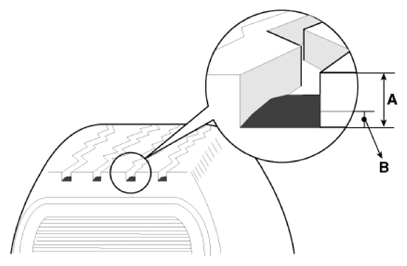

  2. If the remaining tread depth (A) is less than the limit, replace the tire.
NOTE: When the tread depth of the tires is less than 1.6 mm (0.0630 in.), the wear indicators (B) will appear.
G13281424Courtesy of KIA MOTORS AMERICA, INC.
