Repair Procedures: Installation

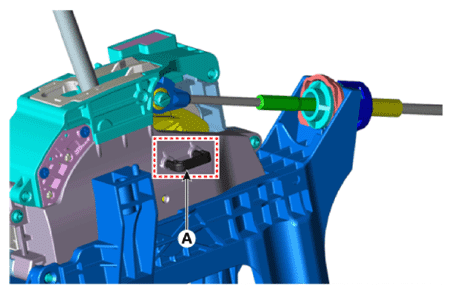

Before installation, insert "N range fixing pin"(A) of shift lever after checking the shift lever and manual control lever are on "N" range.

Courtesy of KIA MOTORS AMERICA, INC.

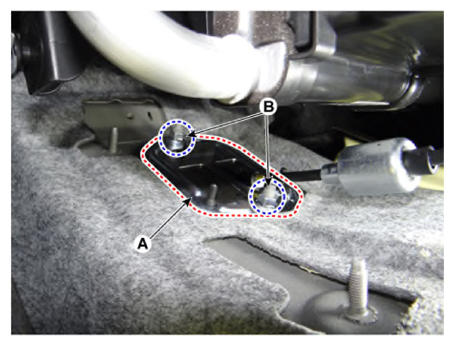

Install the shift cable retainer (A) by tightening nuts (B).
Tightening torque:

11.8 - 14.7 N.m (1.2 - 1.5 kgf.m, 8.7 - 10.8 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

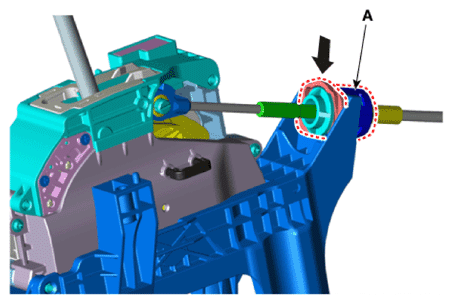

Install the cable socket (A).

Courtesy of KIA MOTORS AMERICA, INC.

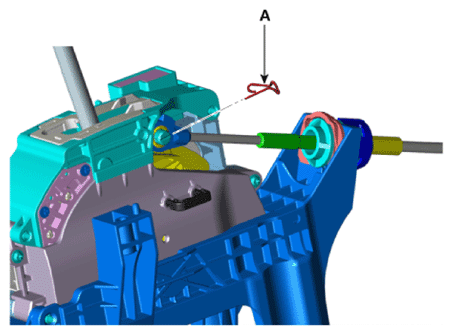

Install the shift cable to the lever pin and then insert the snap pin (A).

Courtesy of KIA MOTORS AMERICA, INC.

NOTE:

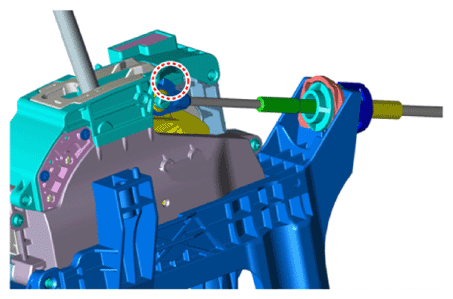

Install the shift cable after checking the direction of projection to prevent incorrect assembly.

Courtesy of KIA MOTORS AMERICA, INC.

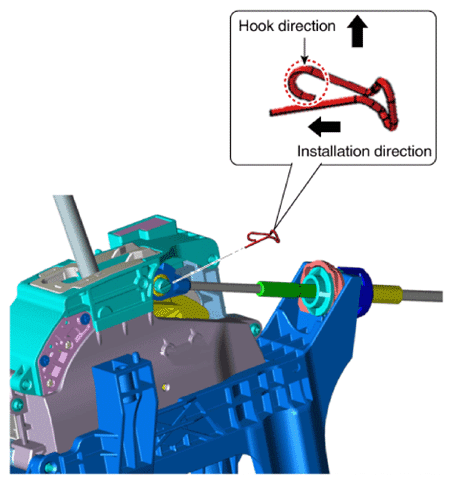

Mind the installation direction of snap pin and install the snap pin with the hook facing upward.

Courtesy of KIA MOTORS AMERICA, INC.

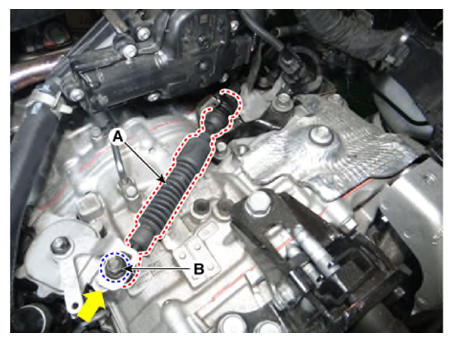

Tighten the nut (B) to the specified torque after removing free play by pushing the shift cable (A) in the direction of the arrow.
Tightening torque:

9.8 - 13.7 N.m (1.0 - 1.4 kgf.m, 7.2 - 10.1 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

NOTE: The existing shift cable clip must be replaced with new one. (Do not reuse it.)

Courtesy of KIA MOTORS AMERICA, INC.
Make sure to get rid of "N range fixing pin"(A) after installing the shift lever assembly.

Courtesy of KIA MOTORS AMERICA, INC.
Install the floor console assembly.
(Refer to Body - "FLOOR CONSOLE ASSEMBLY ")

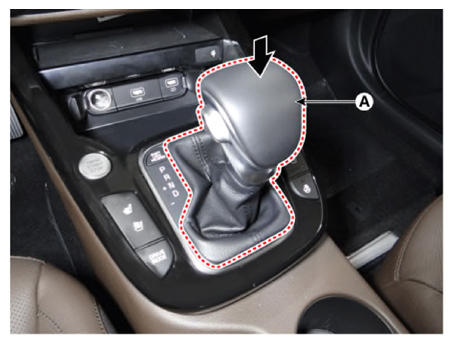

Install the knob (A) by pressing it in the direction of arrow after installing the boots to the console upper cover.

Courtesy of KIA MOTORS AMERICA, INC.
Install the battery and battery tray.
(Refer to Body Electrical System - "BATTERY ")
Install the air cleaner assembly.
(Refer to Engine Mechanical System - "AIR CLEANER ")
