Repair procedures: Removal

  1. Switch "OFF" the ignition and disconnect the negative (-) battery terminal.

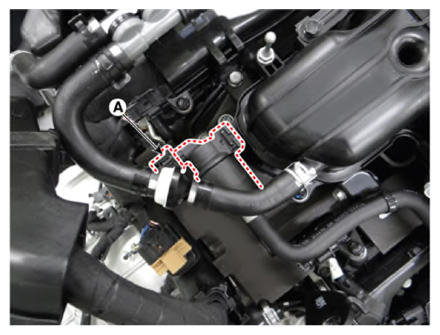

  2. Disconnect the purge control solenoid valve connector (A).
    G13428212Courtesy of KIA MOTORS AMERICA, INC.

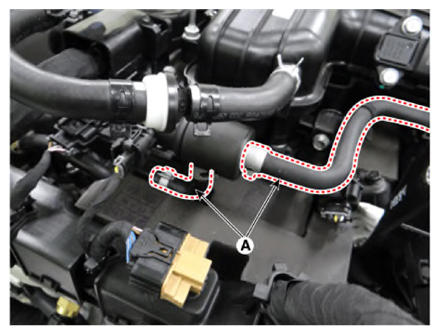

  3. Disconnect the vapor hoses (A) from the purge control solenoid valve.
  4. Remove the valve from the bracket.
    G13428213Courtesy of KIA MOTORS AMERICA, INC.
