Home >> Kia >> 2021 >> Stinger GT-Line, AWD >> Repair and Diagnosis >> Body & Frame >> Windows >> Power Windows >> Power Window Motor >> Repair Procedures >> Removal >> Front Power Window Motor
April 5, 2026: LEMON Manuals is launched! Read the announcement.

Front Power Window Motor

  1. Disconnect the negative (-) battery terminal.
  2. Remove the front door trim.

    (Refer to Body - "FRONT DOOR TRIM ")

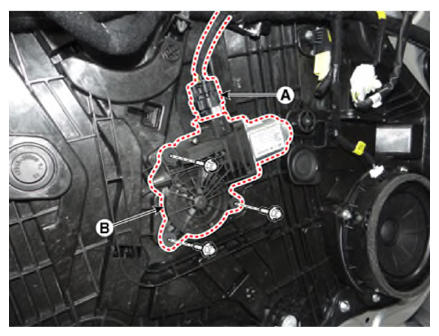

  3. Disconnect the front power window motor connector (A).
  4. Remove the front power window motor (B) after loosening the mounting bolts.
    G13426756Courtesy of KIA MOTORS AMERICA, INC.
