Driver Power Window Switch

CAUTION:
  • When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
  • When removing the interior trim pieces, use a plastic panel removal tool not to damage the surface.
  • Be careful to store and handle the trim when removing/installing because lubricant and oil can leave a stain on the trim.
  1. Disconnect the negative (-) battery terminal.
  2. Remove the driver front door trim.

    (Refer to Body - "FRONT DOOR TRIM ")

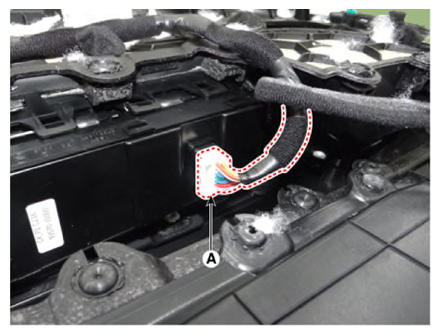

  3. Disconnect the power window switch connector (A).
    G13426769Courtesy of KIA MOTORS AMERICA, INC.

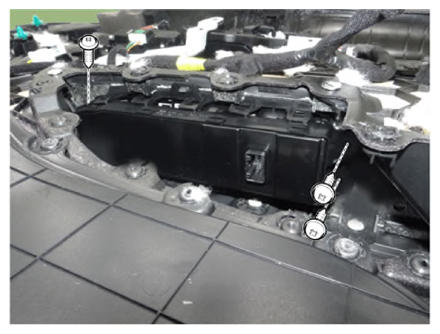

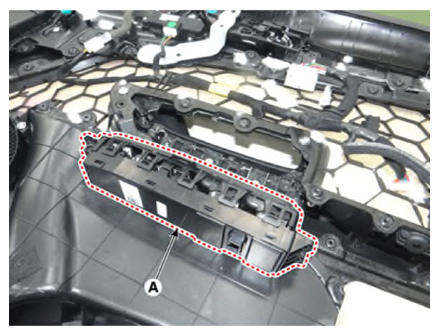

  4. Remove the power window switch (A) after loosening the mounting screws.
    G13426770Courtesy of KIA MOTORS AMERICA, INC.
    G13426771Courtesy of KIA MOTORS AMERICA, INC.
