Rear Power Window Switch

CAUTION:
  • When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
  • When removing the interior trim pieces, use a plastic panel removal tool not to damage the surface.
  • Be careful to store and handle the trim when removing/installing because lubricant and oil can leave a stain on the trim.
  1. Disconnect the negative (-) battery terminal.
  2. Remove the rear door trim.

    (Refer to Body - "REAR DOOR TRIM ")

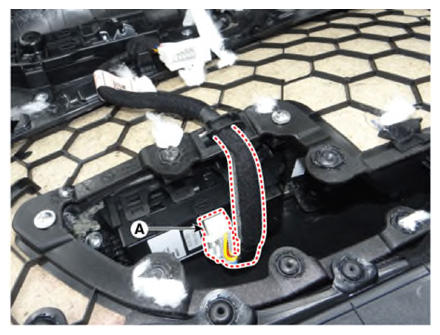

  3. Disconnect the power window switch connector (A).
    G13426775Courtesy of KIA MOTORS AMERICA, INC.

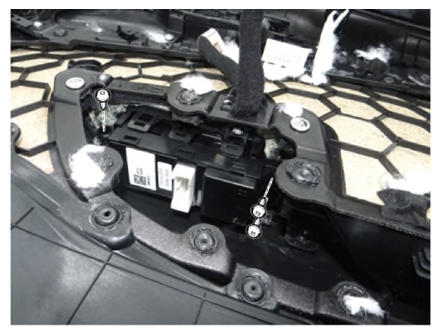

  4. Remove the power window switch (A) after loosening the mounting screws.
    G13426776Courtesy of KIA MOTORS AMERICA, INC.
    G13426777Courtesy of KIA MOTORS AMERICA, INC.
