Repair Procedures: Removal

  1. Switch "OFF" the ignition and disconnect the negative (-) battery terminal.
  2. Remove the front engine room under cover.

    (Refer to Engine Mechanical System - "ENGINE ROOM UNDER COVER ")

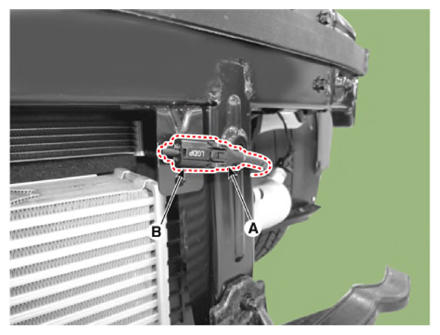

  3. Disconnect the connector (A) and then remove the ambient temperature sensor (B).
G13423528Courtesy of KIA MOTORS AMERICA, INC.
