Wave Form

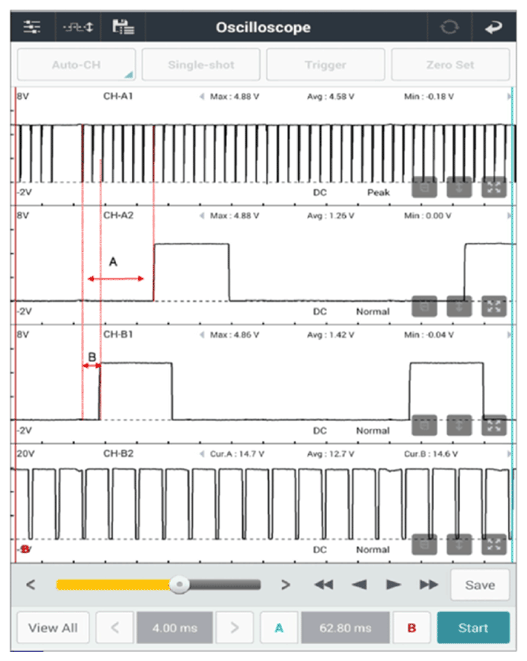

G13423490Courtesy of KIA MOTORS AMERICA, INC.
  1. CKPS & CMPS1 synchronization - There are about 7 teeth between the CKPS missing tooth and CMPS Signal.
  2. CKPS & CMPS2 synchronization - There are about 2 teeth between the CKPS missing tooth and CMPS Signal.
