[Throttle Position Sensor (TPS)]

Throttle Angle (°)	Output Voltage (V) [Ref=5V]
Throttle Angle (°)	TPS1	TPS2
0	0.0	5.0
10	0.48	4.52
20	0.95	4.05
30	1.43	3.57
40	1.90	3.10
50	2.38	2.62
60	2.86	2.14
70	3.33	1.67
80	3.81	1.19
90	4.29	0.71
100	4.76	0.24
105	5.0	0
C.T (6 - 15°)	0.29 - 0.71	4.29 - 4.71
W.O.T (93 - 102°)	4.43 - 4.86	0.14 - 0.57

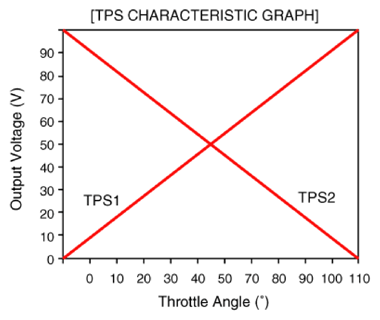

G13423461

Courtesy of KIA MOTORS AMERICA, INC.
