[Bank 1/Sensor 1]

  1. Switch "OFF" the ignition and disconnect the negative (-) battery terminal.

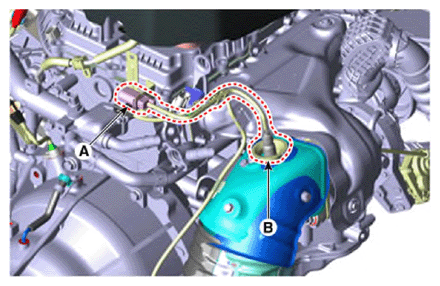

  2. Disconnect the connector (A), and then remove the sensor (B).
G13423506Courtesy of KIA MOTORS AMERICA, INC.
