Repair Procedures: Installation

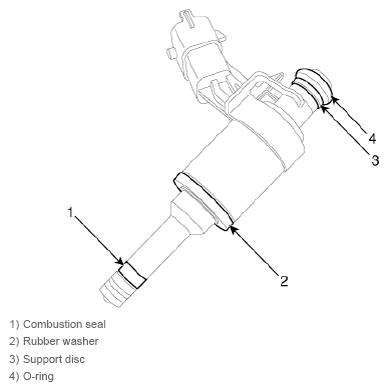

G13423547Courtesy of KIA MOTORS AMERICA, INC.
NOTE:
  • Do not reuse injector fixing clips.
  • Install the component to the specified torques.
  • Note that internal damage may occur when the component is dropped. If the component has been dropped, inspect before installing.
  • Apply engine oil to the injector O-ring.
  • Do not reuse injector O-rings.
  • Do not reuse bolts.
  • When inserting the injector, be careful not to damage the injector tip.
  • Do not reuse the high pressure fuel pipe.
NOTE:
  • Do not reuse the support disc.
  • Do not reuse the injector rubber washer.

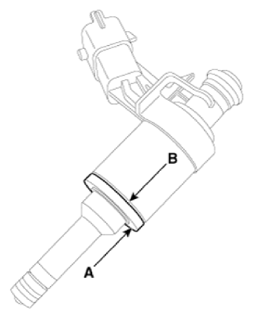

  • When replacing the rubber washer, the steal plate (A) part should be facing the cylinder installation part and the rubber plate (B) part should be facing the injector body part.
G13423548Courtesy of KIA MOTORS AMERICA, INC.
NOTE:
  • Do not reuse the combustion seal.
NOTE:

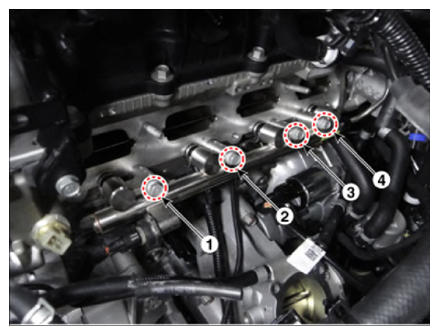

  • When tightening the delivery pipe installation bolts, pre-tighten them by hand, and then fully tighten them in the sequence of (2) → (3) → (1) → (4).
G13423549Courtesy of KIA MOTORS AMERICA, INC.
  1. Install in the reverse order of removal.
