Repair Procedures: Removal

Release the residual pressure in fuel line.
(Refer to the Fuel Delivery System - "RELEASE RESIDUAL PRESSURE IN FUEL LINE ")
Switch "OFF" the ignition and disconnect the negative (-) battery terminal.
Remove the intake manifold.
(Refer to Engine Mechanical System - "INTAKE MANIFOLD ")

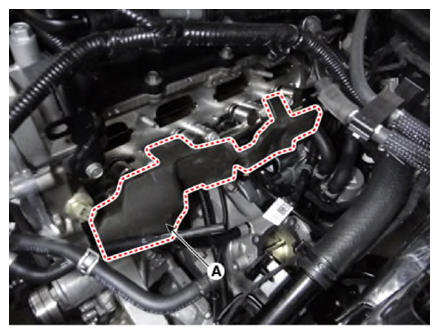

Remove the delivery pipe foam (A).

Courtesy of KIA MOTORS AMERICA, INC.
Remove the cowl top cover assembly.
(Refer to Body (Interior and Exterior) - COWL TOP COVER ")

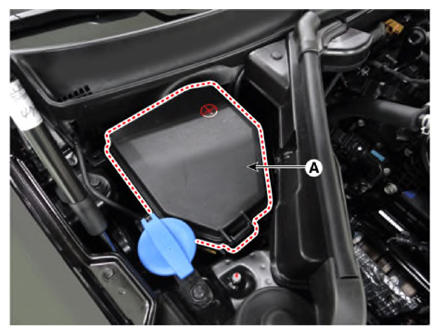

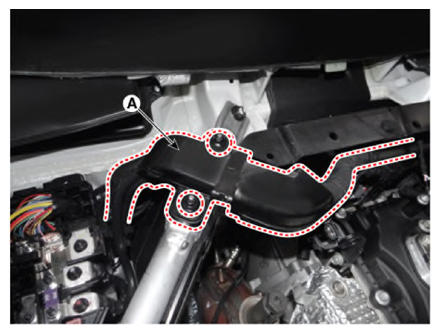

Remove the engine box cover (A).

Courtesy of KIA MOTORS AMERICA, INC.

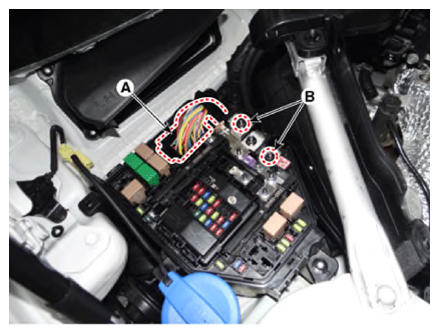

Disconnect the front control connector (A).
Remove the groune terminal nuts (B).

Courtesy of KIA MOTORS AMERICA, INC.
Remove the wiring protector (A).

Courtesy of KIA MOTORS AMERICA, INC.

Remove the high pressure fuel pipe.

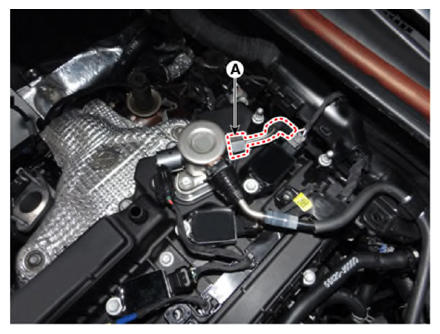

Remove the high pressure fuel pipe mounting bolt (A).

Courtesy of KIA MOTORS AMERICA, INC.

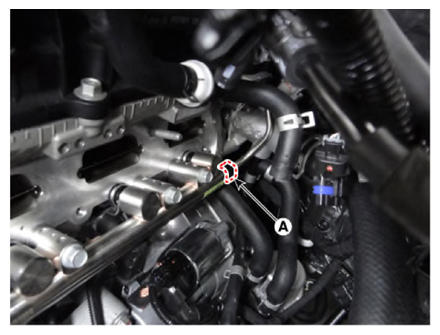

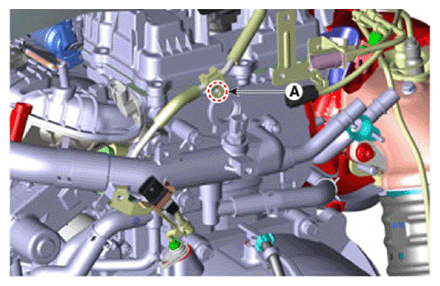

Remove the high pressure fuel pipe flange nut (A).

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

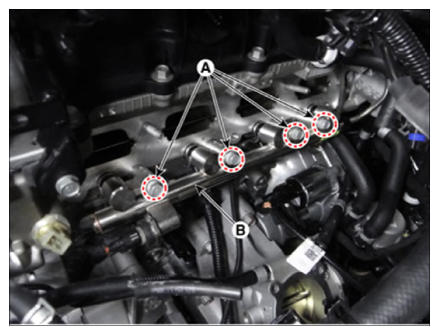

Remove the mounting bolts (A), and then remove the delivery pipe & injector assembly from the engine.

Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the injector & rail pressure sensor connector (A).

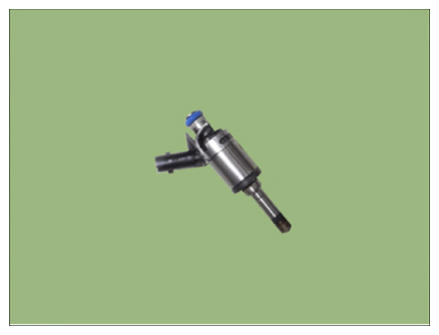

Remove the injector (B) from the delivery pipe.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.
