Repair Procedures: Removal

  1. Switch "OFF" the ignition and disconnect the negative (-) battery terminal.

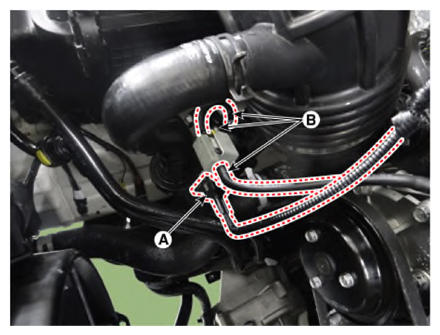

  2. Remove the RCV control solenoid valve after disconnecting the connector (A), RCV hoses (B).
G13423586Courtesy of KIA MOTORS AMERICA, INC.
