Repair Procedures: Removal

  1. Release the residual pressure in fuel line.

    (Refer to the Fuel Delivery System - "RELEASE RESIDUAL PRESSURE IN FUEL LINE ")

  2. Switch "OFF" the ignition and disconnect the negative (-) battery terminal.
  3. Remove the intake manifold.

    (Refer to Engine Mechanical System - "INTAKE MANIFOLD ")

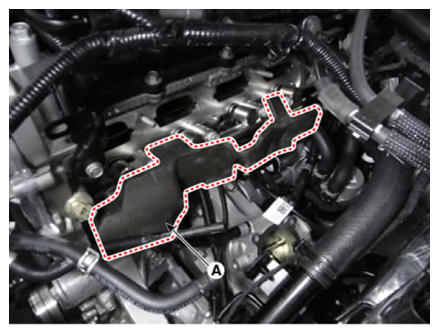

  4. Remove the delivery pipe foam (A).
    G13423514Courtesy of KIA MOTORS AMERICA, INC.

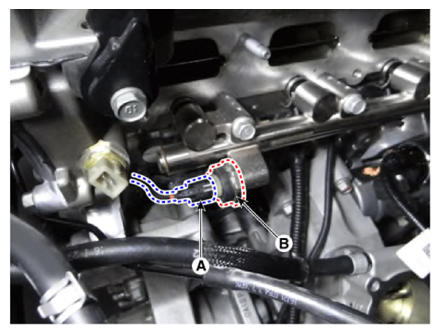

  5. Disconnect the rail pressure sensor connector (A), and then remove the sensor (B) from the delivery pipe.
    G13423515Courtesy of KIA MOTORS AMERICA, INC.
