Steering Limit Position Setting

NOTE:
  • Steering Limit Position Setting is must be done when any of cases is met as below.
    • After replacing SCM Unit.
    • After replacing steering.
    • SCM Error (Only 2 second movement while pressing SCM switch)
  1. Perform the "STEERING LIMIT POSITION SETTING " using the KDS.

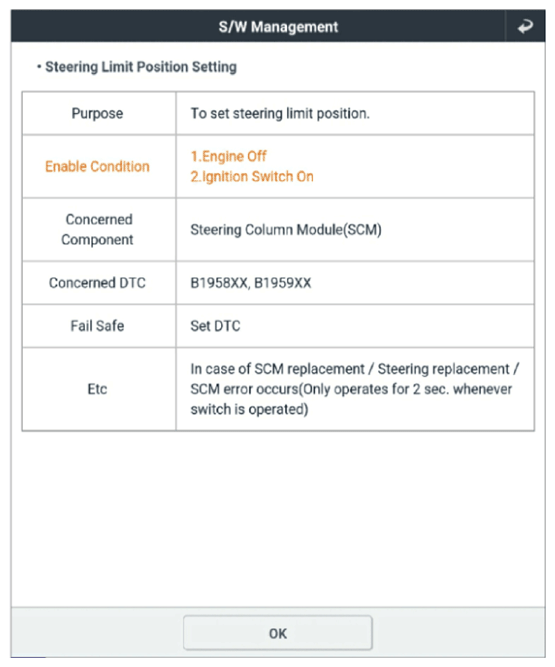

    G13424786Courtesy of KIA MOTORS AMERICA, INC.

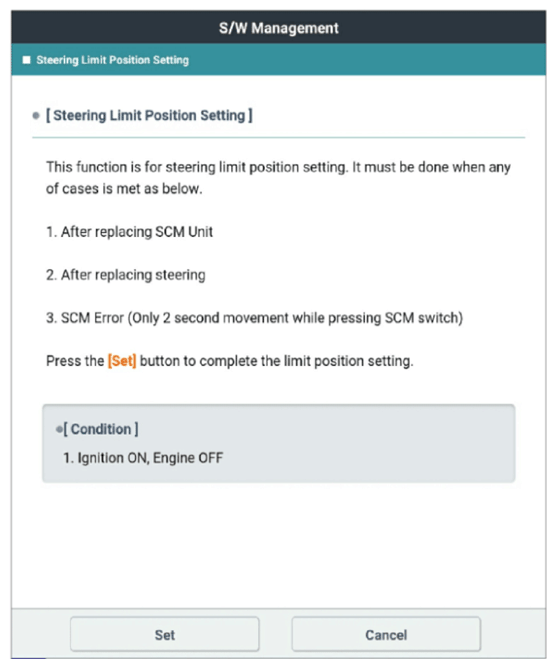

    G13424787Courtesy of KIA MOTORS AMERICA, INC.

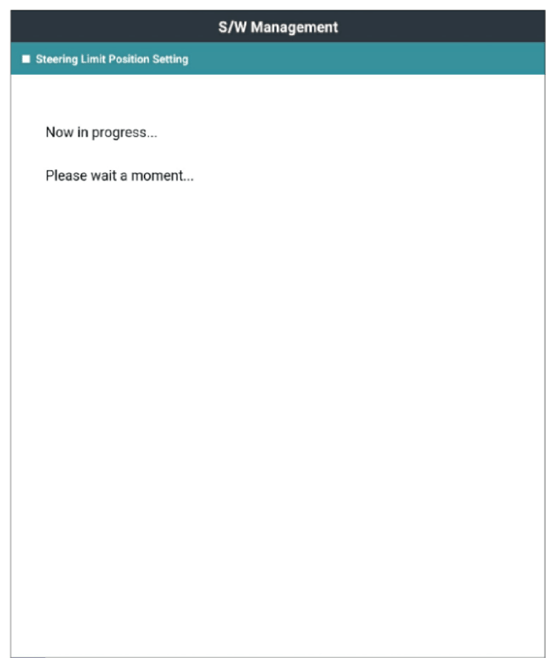

    G13424788Courtesy of KIA MOTORS AMERICA, INC.

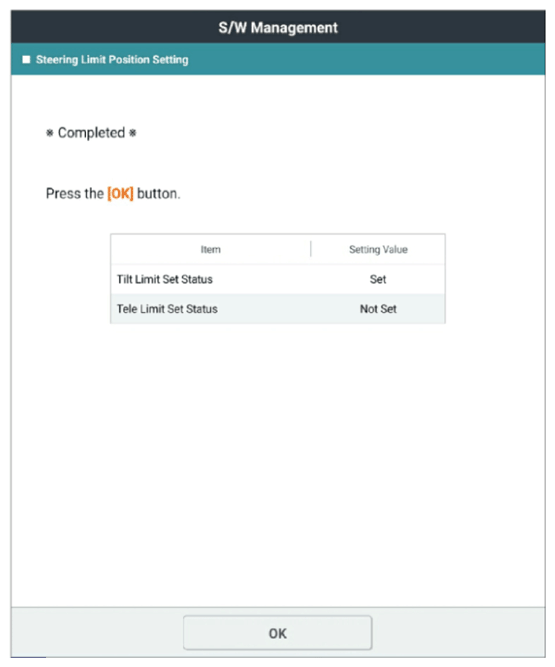

    G13424789Courtesy of KIA MOTORS AMERICA, INC.
