Repair Procedures: Installation

  1. Apply tire soap or lubrication to the top and bottom tire beads.
    G13424733Courtesy of KIA MOTORS AMERICA, INC.

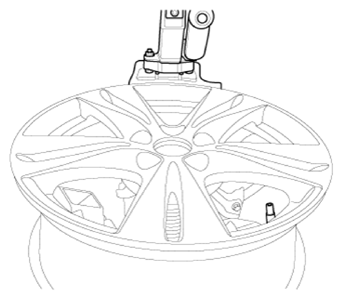

  2. To fit the bottom bead, position the valve at the 5 o'clock position relative to the head on the tire changing machine.
    G13424734Courtesy of KIA MOTORS AMERICA, INC.

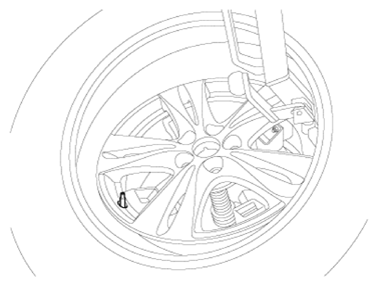

  3. Place the tire on the rim so the bottom bead touches the edge of the rim after the valve (6 o'clock). Rotate the rim clockwise, and push down on the tire at the 3 o'clock position to fit bottom bead.
    G13424735Courtesy of KIA MOTORS AMERICA, INC.

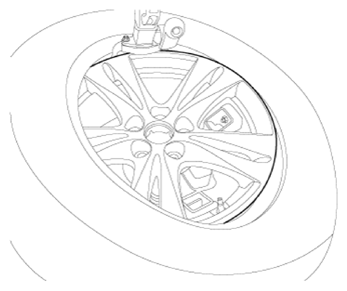

  4. After bottom bead is on tire, rotate the rim until the valve is at the 5 o'clock position relative to the head on the tire changing machine. Push down on the tire at the 3 o'clock position and rotate the rim clockwise to fit the top bead.
    G13424736Courtesy of KIA MOTORS AMERICA, INC.

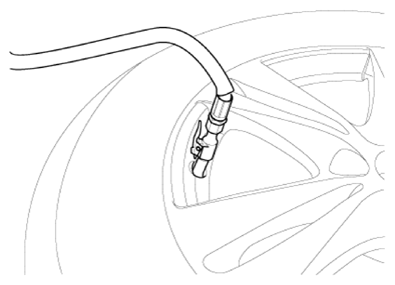

  5. Inflate the tire until both beads seat.
    Item Specification
    Front Rear
    Tire pressure kPa (psi) 225/45R18 All 250 (36) 270 (39)
    225/40ZR19 2.0 T-GDI (All), 3.3 T-GDI (2WD) 250 (36)
    255/35ZR19 2.0 T-GDI (All), 3.3 T-GDI (2WD) - 250 (36)
    225/40ZR19 3.3 T-GDI (AWD) 260 (38) -
    255/35ZR19 3.3 T-GDI (AWD)   250 (36)
    T135/80R18 All 420 (60)
    G13424737Courtesy of KIA MOTORS AMERICA, INC.
