Repair Procedures: Removal

  1. Remove valve core and deflate the tire.

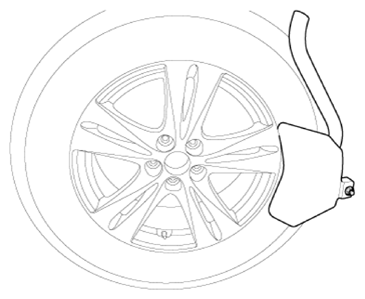

  2. Remove the side of the tire bead area from the wheel using tire changing machine.
    G13424730Courtesy of KIA MOTORS AMERICA, INC.
    CAUTION:
    • The tire bead should be broken approx. 90° from the valve side of the wheel. The bead breaker should not be set too deep.
    • Avoid tire/tool contact with the valve on dismount.
    • Dismount should end near the valve.

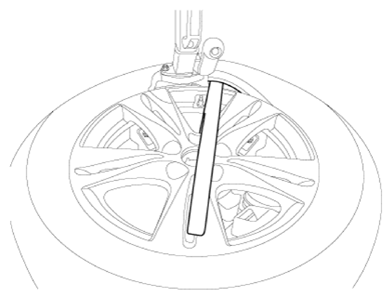

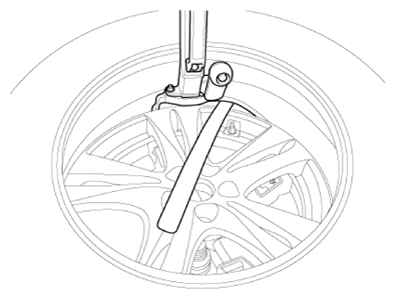

  3. Rotate the wheel clockwise.
    G13424731Courtesy of KIA MOTORS AMERICA, INC.
    G13424732Courtesy of KIA MOTORS AMERICA, INC.
