Special Service Tools

Tool Name/Number	Illustration	Description
Fuel Pressure Gauge 09353-24100	Courtesy of KIA MOTORS AMERICA, INC.	Used for measuring the pressure in fuel line
Fuel Pressure Gauge Adaptor 0K353-D4100	Courtesy of KIA MOTORS AMERICA, INC.	Used for connecting between high pressure fuel pump and low pressure fuel feed tube to measure the pressure in fuel line *SST 09353-02100 also can be used
Heated Oxygen Sensor Socket Wrench 09392-1Y100	Courtesy of KIA MOTORS AMERICA, INC.	Removal and installation of the heated oxygen sensor * SST No. 09392-2H100 model also can be used for removing the Heated Oxygen Sensor.
Torque Wrench Socket (19 mm) 09314-3Q100	Courtesy of KIA MOTORS AMERICA, INC.	Used for removing/installing high pressure fuel pipe * SST No. 09314-27130 also can be used.

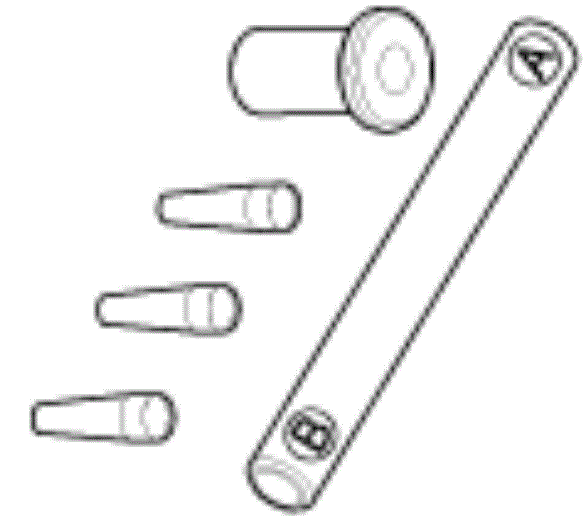

Injector Combustion Seal Guide & Sizing tool 09353-2B000	Courtesy of KIA MOTORS AMERICA, INC.	Used for installing injector combustion seal on injector
Sub Fuel Sender Plate Cover remover 09310-B9100	Courtesy of KIA MOTORS AMERICA, INC.	Used for removing/installing fuel pump.
Low Pressure Fuel Pump Plate Cover remover 09310-B8100	Courtesy of KIA MOTORS AMERICA, INC.	Used for removing/installing fuel pump.
