Repair procedures: Removal
- Switch "OFF" the ignition and disconnect the negative (-) battery terminal.

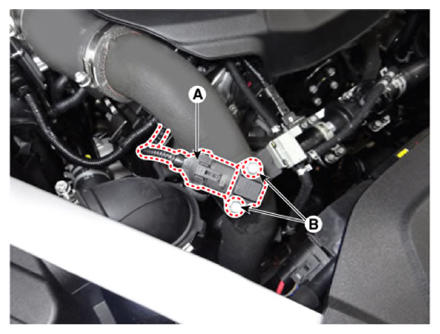

- Disconnect the boost pressure sensor connector (A).
- Remove the mounting bolt (B), and then remove the sensor from the intercooler outlet pipe.
Boost pressure sensor mounting bolt:
9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)
