Components Location

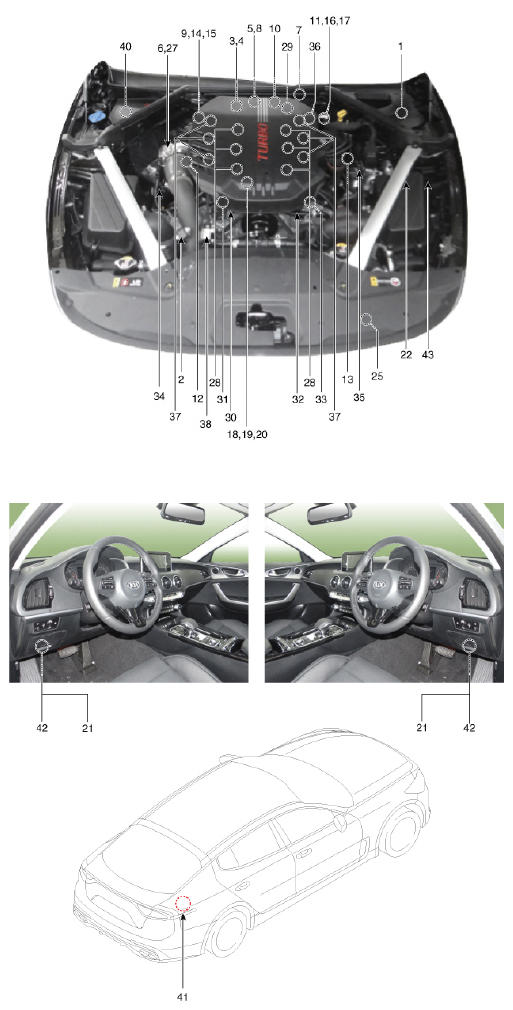

G13428091

Courtesy of KIA MOTORS AMERICA, INC.

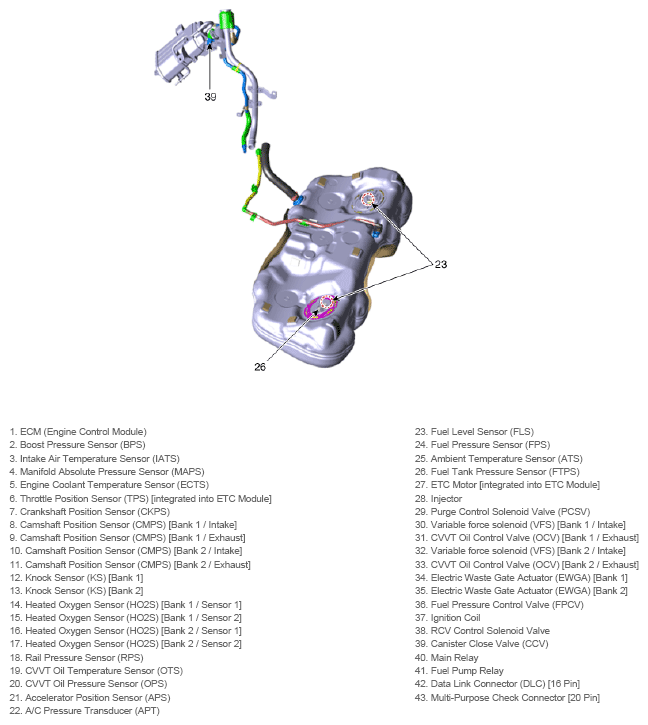

G13428092

Courtesy of KIA MOTORS AMERICA, INC.

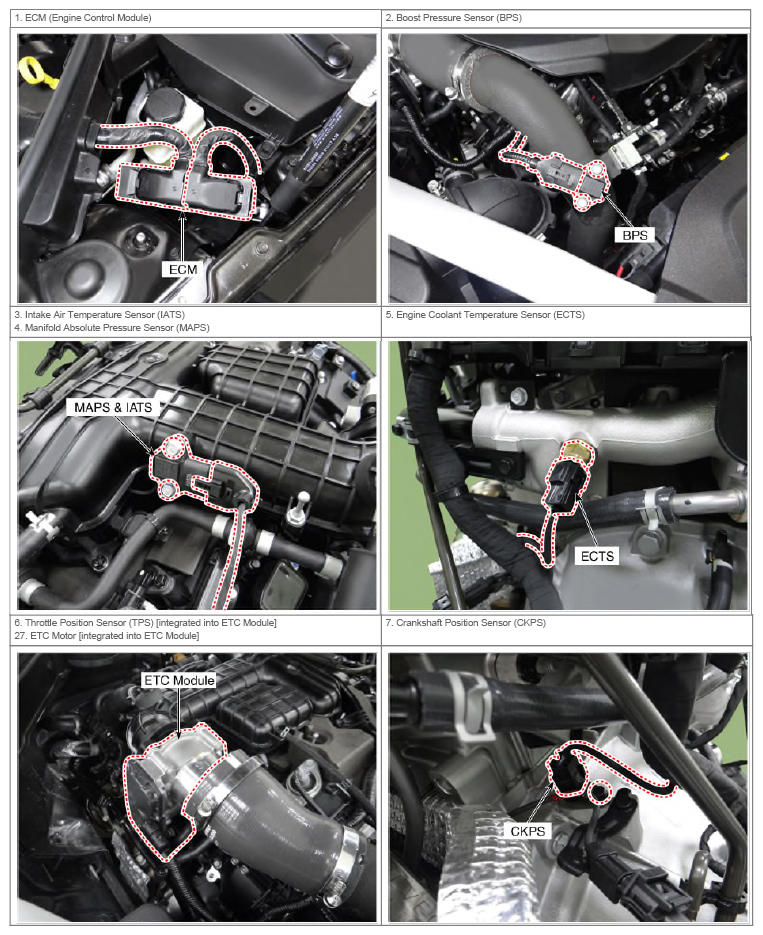

G13428093

Courtesy of KIA MOTORS AMERICA, INC.

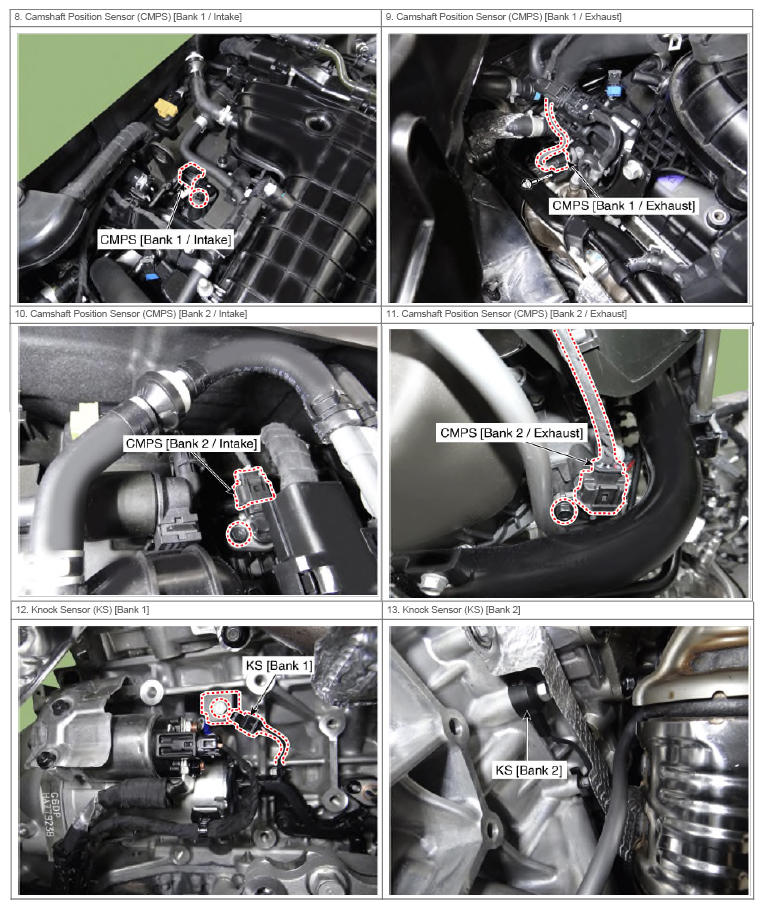

G13428094

Courtesy of KIA MOTORS AMERICA, INC.

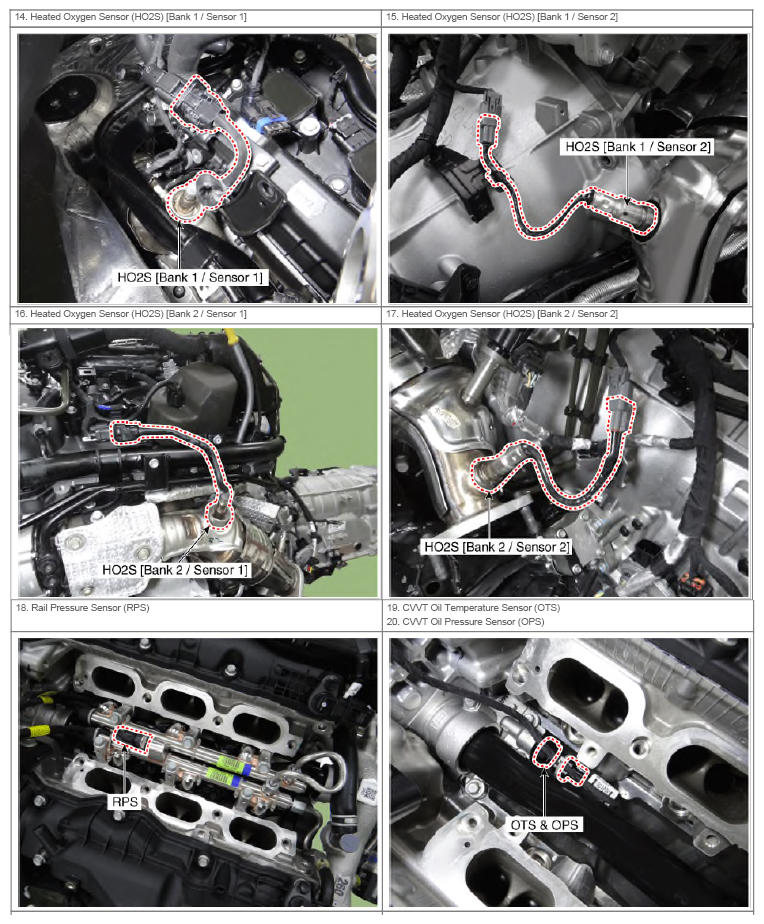

G13428095

Courtesy of KIA MOTORS AMERICA, INC.

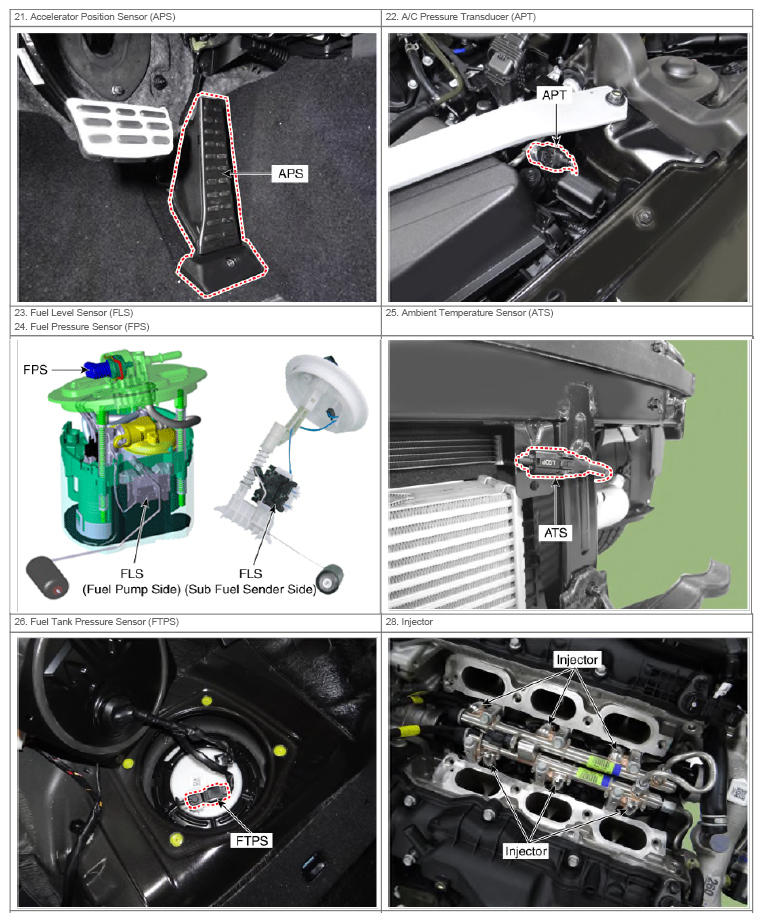

G13428096

Courtesy of KIA MOTORS AMERICA, INC.

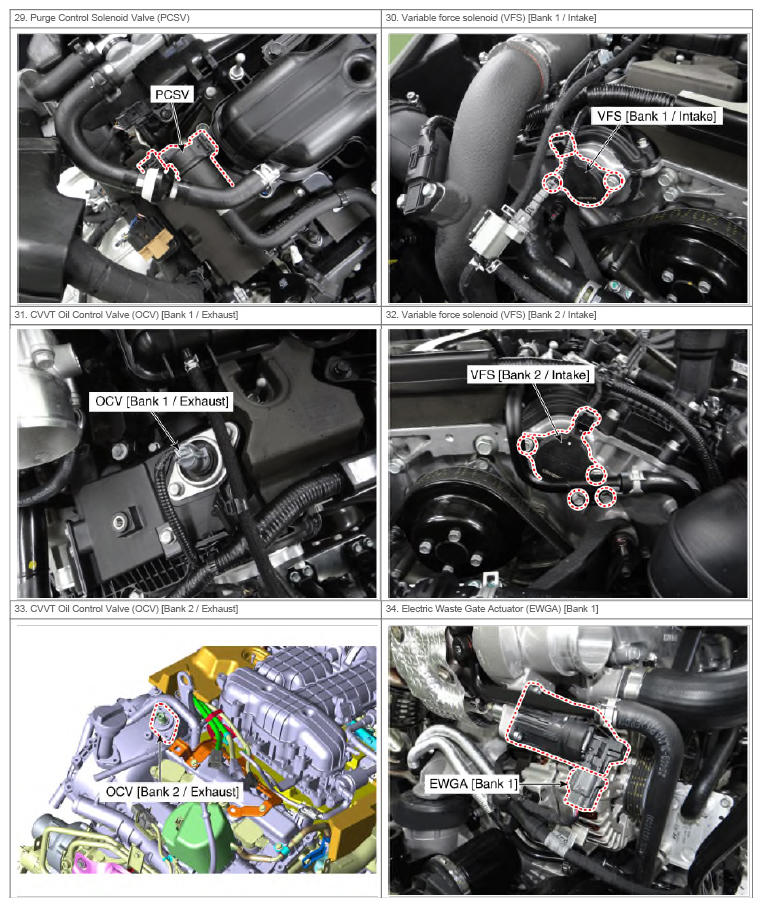

G13428097

Courtesy of KIA MOTORS AMERICA, INC.

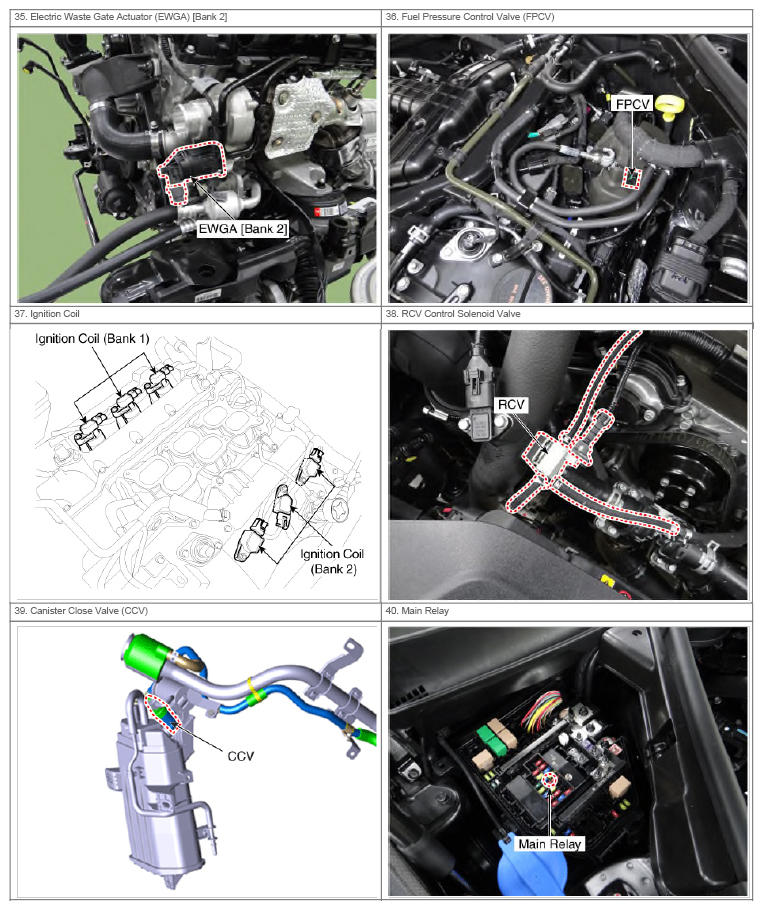

G13428098

Courtesy of KIA MOTORS AMERICA, INC.

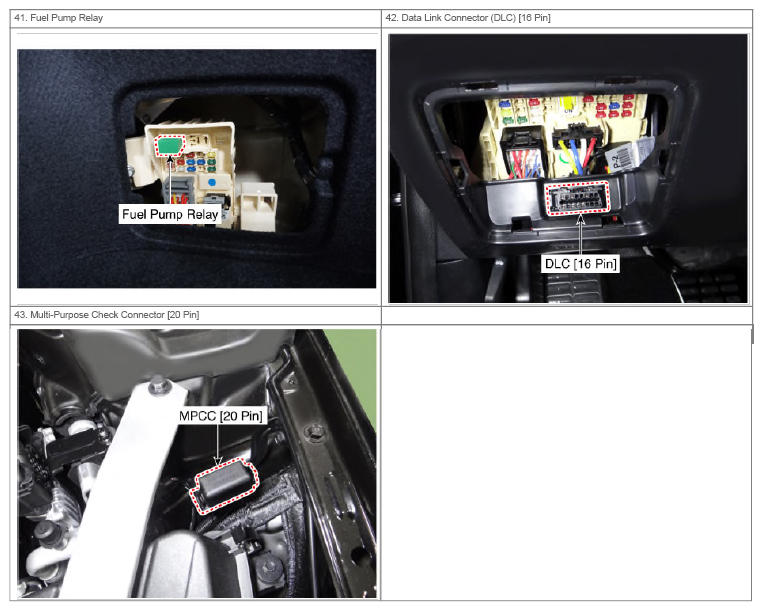

G13428099

Courtesy of KIA MOTORS AMERICA, INC.
