Repair procedures: Removal
- Switch "OFF" the ignition and disconnect the negative (-) battery terminal.
- Remove the LH catalytic converter.
(Refer to Emission Control System - "CATALYTIC CONVERTER ")

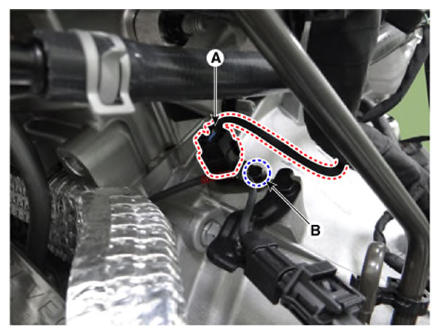

- Disconnect the crankshaft position sensor connector (A).
- Remove the installation bolt (B), and then vertically remove the sensor from the transaxle housing.
Crankshaft position sensor installation bolt:
9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)
