Repair procedures: Removal

Switch "OFF" the ignition and disconnect the negative (-) battery terminal.

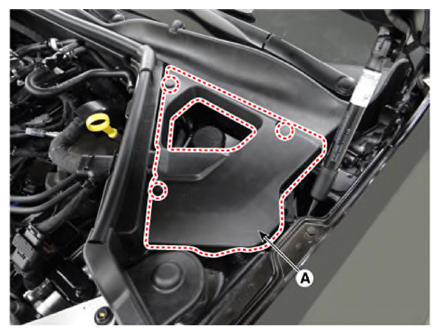

Remove the engine side cover (A).

Courtesy of KIA MOTORS AMERICA, INC.

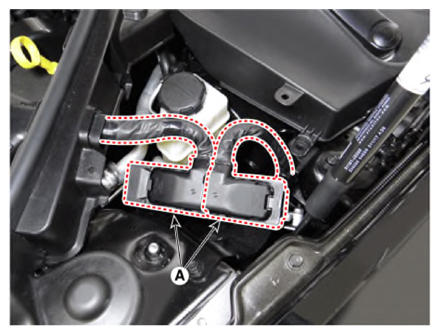

Disconnect the ECM Connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

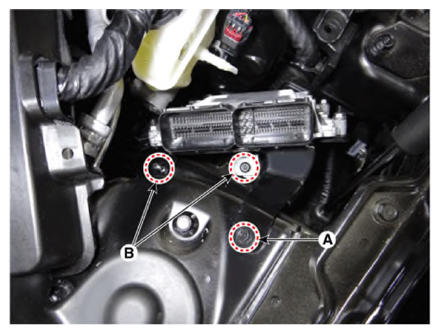

Remove the ECM bracket assembly after loosening the mounting bolt (A) and nuts (B).
ECM mounting bolt/nut:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

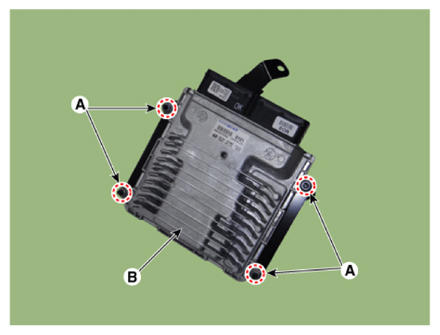

Remove the ECM (B) after loosening the mounting nuts (A).
ECM bracket mounting bolt/nut:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.
