Repair procedures: Removal
- Switch "OFF" the ignition and disconnect the negative (-) battery terminal.
- Remove the engine cover.
(Refer to Engine Mechanical System - "ENGINE COVER ")
- Remove the surge tank.
(Refer to Engine Mechanical System - "SURGE TANK ")

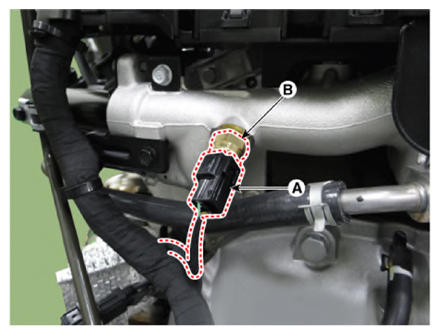

- Disconnect the engine coolant temperature sensor connector (A).
- Remove the water temperature sensor (B) from the water temperature control assembly.
CAUTION:
- Note that engine coolant may leak out of the water temperature control assembly when removing the sensor.
