[Assist power window sub switch]

  1. Remove the front right door trim.

    (Refer to Body - "FRONT DOOR TRIM ")

  2. Check for continuity between the terminals in each switch position according to the table.

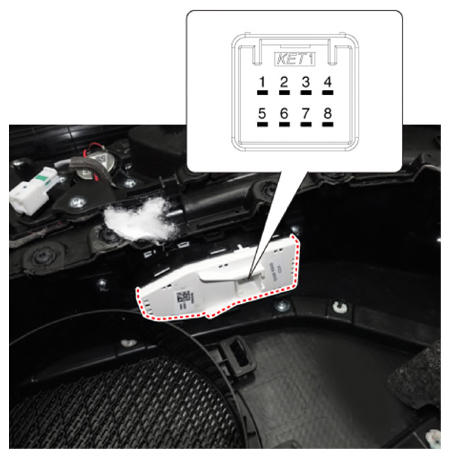

G13312404Courtesy of KIA MOTORS AMERICA, INC.
G13312405Courtesy of KIA MOTORS AMERICA, INC.
