Repair Procedures: Inspection
- Connect the KDS to the vehicle's data link connector (DLC).
- Check for DTCs and repair according to the DTC guide.

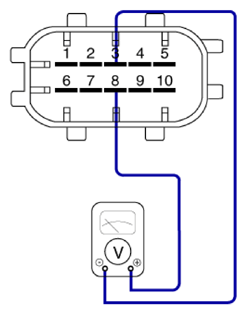

- Check the power supply voltage provided to the fuel pressure sensor (FPS).
Specification : 5V
- Check the voltage provided to the fuel pressure sensor (FPS) at idle.
Specification : 1.9 - 3.2 V
- Check the fuel pressure in the low fuel line.
(Refer to Fuel Delivery System - "FUEL PRESSURE TEST ")
