Home >> Kia >> 2021 >> Telluride EX, FWD >> Repair and Diagnosis >> Body & Frame >> Ignition Switch/Steering Lock >> Button Engine Start System >> Start/Stop Button >> Repair Procedures >> Removal
April 5, 2026: LEMON Manuals is launched! Read the announcement.

Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the crash pad center panel.

    (Refer to Body - "CRASH PAD CENTER PANEL ")

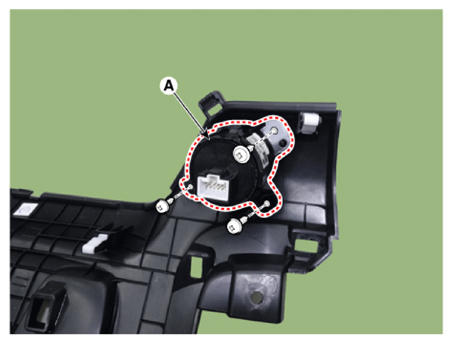

  3. Remove the star/stop button (A) after loosening the mounting screws.
G13312016Courtesy of KIA MOTORS AMERICA, INC.
